Name: Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSYT-A
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > Environmental Monitoring >

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Luogo di origine:

Cina

Marca:

KACISE

Certificazione:

Numero di modello:

KQS-CSYT-A

Contattaci

Chiedi un preventivo

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Dettagli del prodotto

Intervallo di velocità del vento:

0-70 m/sec

Parametri misurati:

Velocità del vento, direzione del vento, temperatura, umidità, pressione, bussola, GPS (opzionale)

Precisione:

Velocità del vento: ±(0,5+0,02rdg) m/s; Direzione del vento: ±3°; Temperatura: ±0,3°C

Protezione:

Struttura resistente alla corrosione, agli spruzzi salini, completamente sigillata

Applicazione:

Porti, isole, navi, piattaforme di trivellazione petrolifera offshore

Uscita del segnale:

RS485 con protocollo Modbus standard

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una scatola individuale, tutte le scatole sono imballate in pacchi standard o su richi

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabili

Prodotti correlati

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Ottieni il miglior prezzo

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Ottieni il miglior prezzo

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Ottieni il miglior prezzo

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

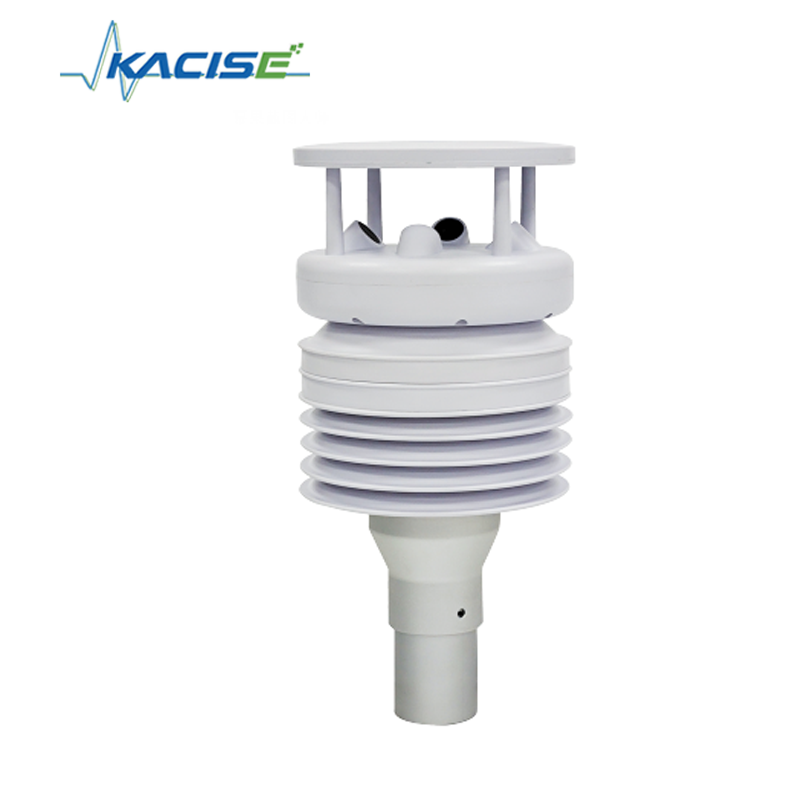

KQS-CSYT-A Corrosion-Resistant Ultrasonic Environmental Monitor

The KQS-CSYT-A corrosion-resistant ultrasonic environmental monitor is a meteorological environmental monitoring instrument specifically designed for marine environments or highly corrosive gas environments. Compared with traditional ultrasonic environmental monitors, it features specially selected corrosion-resistant ultrasonic transducers and a specialized structural design that enhances corrosion resistance and sensor probe replaceability.

Product Features

Designed for harsh marine environments; temperature, humidity, and pressure sensors use polymer membranes to extend service life
Easy maintenance: when the temperature/humidity probe reaches end of life, it can be replaced directly without returning the entire unit for repair
Advanced filtering algorithms with special compensation for rain and fog conditions
Uses high-quality 200 kHz ultrasonic transducers for more accurate and stable wind measurement
Salt-spray resistant probes with fully sealed structure, tested to national standards; suitable for coastal and port environments
RS485 output with standard Modbus protocol for easy system integration
Modular and highly integrated design
Low power consumption
Optional heating function, electronic compass, and GPS support

Technical Parameters

Environmental Parameter (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-70 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02rdg) m/s	0.01 m/s	0.1 W
Wind direction	0-360°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	1 mW
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa	0.1 mW
Electronic compass	0-360°	±5°	1°	100 mW
GPS (longitude)	-180° to 180°	≤10 m	0.1 s	--
GPS (latitude)	-90° to 90°	≤10 m	0.1 s	--
GPS (altitude)	-3276.7 to 3276.7 m	≤3 m	0.1 m	--

Total Power Consumption: Total power = power of selected sensors + base board power; base board power is 300 mW.

Dimensions
