Name: KQL-QXM Handheld Weather Meter with 12 Measurement Parameters IP64 Protection and 98,000 Records Storage
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQL-QXM
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > Environmental Monitoring >

KQL-QXM Handheld Weather Meter with 12 Measurement Parameters IP64 Protection and 98,000 Records Storage

Luogo di origine:

CINA

Marca:

KACISE

Certificazione:

Numero di modello:

KQL-QXM

Contattaci

Chiedi un preventivo

KQL-QXM Handheld Weather Meter with 12 Measurement Parameters IP64 Protection and 98,000 Records Storage

Dettagli del prodotto

Display:

LCD a matrice di punti 240x160 con retroilluminazione

Parametri di misurazione:

Velocità del vento, direzione del vento, temperatura, umidità, pressione atmosferica, altezza delle

Grado di protezione:

IP64

Capacità di archiviazione:

98.000 registrazioni (intervallo 1-240 min)

Comunicazione:

USB (standard), GPRS (opzionale)

Alimentazione elettrica:

4 batterie AA da 1,5 V (standard); Batteria al litio ricaricabile o energia solare (opzionale)

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pezzo

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Ottieni il miglior prezzo

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Ottieni il miglior prezzo

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Ottieni il miglior prezzo

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

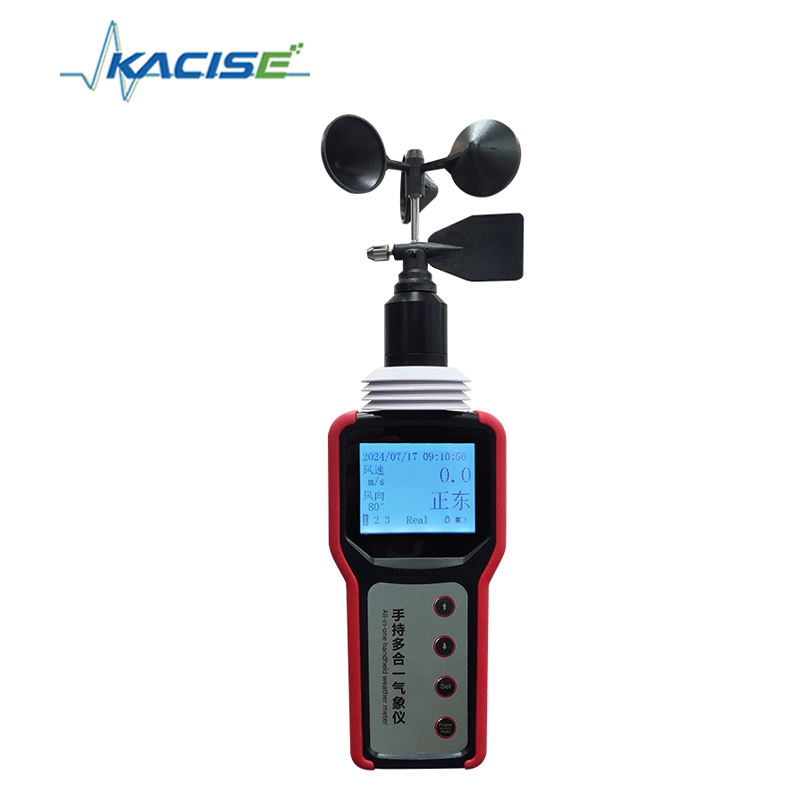

KQL-QXM Handheld Multi-function Weather Meter

Product Overview

The KQL-QXM Handheld Multi-function Weather Meter is a portable, easy-to-operate mobile meteorological instrument integrating multiple weather elements. Using precision sensors and intelligent chips, it can simultaneously measure, record and store wind speed, wind direction, atmospheric pressure, temperature, humidity, wave height, GPS coordinates, wind level, wind chill, dew point, altitude and other environmental elements.

Equipped with a wind direction sensor and electronic compass, it can directly measure and display real-time wind direction in 8 compass points and 0-359°. It can measure real-time data of each element and also read average and maximum data. The instrument also features an audio-visual alarm for wind speed, pressure, temperature and humidity monitoring. When real-time data exceeds set limits, the alarm is triggered.

The battery can work for extended periods under energy-saving conditions. Different energy-saving schemes are implemented including backlight off, screen off, and auto power-off. Optional dedicated meteorological tripod and solar power system support long-term unattended outdoor observation. Built-in large-capacity FLASH storage can store at least one year of meteorological data. The universal USB interface allows data download to a computer. Optional built-in GPRS and GPS modules support IoT software connection.

This instrument is widely used in meteorology, environmental protection, airports, agriculture, hydrology, warehousing, scientific research and other fields.

Key Features

Industry-first: compact handheld weather station with electronic wind direction display and historical data storage
Built-in electronic compass reads real-time wind direction (8 directions) and angle (0-359°) without geographic reference
240*160 dot matrix LCD with backlight, displaying up to 12 parameters
Large capacity storage: up to 98,000 records (interval settable 1－240 minutes)
Universal USB interface for convenient data download
Satellite positioning (GPS+BeiDou) with GPRS communication for IoT software connection
System language switchable between Chinese and English
Multiple power options: 4 x 1.5V AA batteries standard; optional rechargeable lithium battery
Optional portable solar power system for long-term field work
Dedicated portable meteorological tripod, easy to carry and install
Low power consumption with adjustable backlight, screen-off and auto power-off settings
Built-in alarm for temperature, humidity, pressure and wind speed with configurable limits
Professional waterproof carrying case (optional)
Passed wind tunnel test, temperature/humidity/pressure calibration, and high/low temperature environmental testing by metrology institute

Applications

Meteorological Monitoring: Comprehensive multi-element monitoring at weather stations
Environmental Protection: Environmental parameter recording and analysis
Airport Meteorology: Multi-element monitoring in airport meteorological systems
Agricultural Research: Environmental meteorology and crop growth research
Hydrological Monitoring: Weather data collection at hydrological stations
Warehouse Management: Environmental parameter monitoring in storage facilities
Scientific Research: Meteorological and environmental science research

Technical Specifications

Parameter	Range	Accuracy	Resolution	Unit
Wind Speed	0~45	±(0.5+0.02*measured)	0.1	m/s
Wind Level	0~12	±1	1	Level
Wind Direction (8-point)	8 points	±1 point	1 point	Point
Wind Direction (Angle)	0~359°	±3°	1°	°
Temperature	-40~100	±0.3	0.1	℃
Humidity	0~100	±5	0.1	%RH
Atmospheric Pressure	300~1100	±0.5	0.1	hPa
Wave Height	0~14.0	±0.2	0.1	m
Wind Chill	-73~10	±1	1	/
Dew Point	-76~100	±0.5	0.1	℃
Longitude	-180~180	≤10m	0.1 sec	°
Latitude	-90~90	≤10m	0.1 sec	°
Altitude	-500~9000	≤3m	1	m

Note: Wind speed start threshold ≤0.8m/s

Item	Specification
Power Supply	Standard: 4 x 1.5V AA batteries; Optional: rechargeable lithium battery (5V, ≤1A) or solar power system
Communication	Standard: USB data cable; Optional: GPRS wireless
Storage	98,000 records
Weight	Net approx. 0.5kg (approx. 2kg with case)
Dimensions	2939595mm (without packaging)
Operating Environment	Temp -20℃－60℃; Humidity ≤100%RH non-condensing
Protection Grade	IP64
