Name: Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQL-QXY
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > Environmental Monitoring >

Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Luogo di origine:

Cina

Marca:

KunQuan

Certificazione:

Numero di modello:

KQL-QXY

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Alimentazione elettrica:

Batteria al litio integrata da 12,6 V 10 Ah + solare 18 V/30 W + 24 V CC

Grado di protezione:

IP65 completamente impermeabile

Display:

Touchscreen resistivo da 7 pollici

Tempo di funzionamento:

50 ore (modalità schermo spento)

Comunicazione:

4G (Cat-1) + RS485 (Modbus/MQTT)

Peso:

Unità principale 3,9 kg, supporto 2,0 kg

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabili

Prodotti correlati

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Ottieni il miglior prezzo

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Ottieni il miglior prezzo

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Ottieni il miglior prezzo

Strumento di monitoraggio dell'umidità del suolo a più strati tubolare KQS-GTM con tecnologia FDR per il monitoraggio a più strati (10/20/30/40 cm) e l'energia solare

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

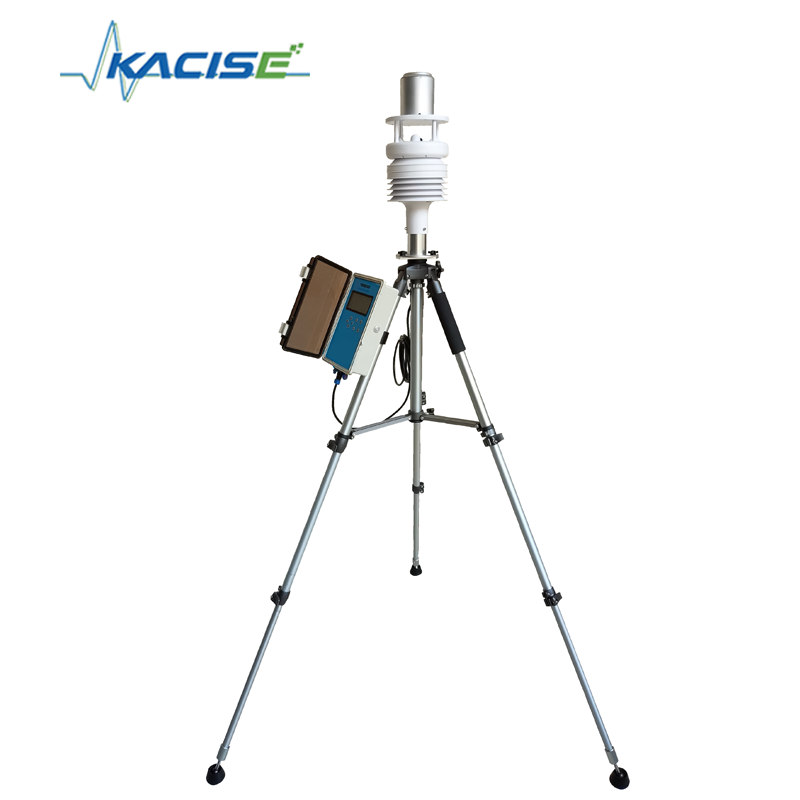

KQL-QXY Portable Ultrasonic Weather Station (Touchscreen Version)

Product Overview

The portable ultrasonic weather station (touchscreen version) is a lightweight, integrated meteorological system that combines an internal power supply (lithium battery pack), data acquisition, touchscreen display, data storage, data analysis, and data uploading (via 4G communication). It is designed for convenient environmental and meteorological measurements during field operations.

The device measures basic meteorological parameters including wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. Measurement parameters are customizable and can be expanded according to customer requirements.

The system supports both solar panel and 24V DC power supply, which can not only power the device but also charge the built-in lithium battery pack.

This product is widely used in agricultural irrigation, environmental monitoring, field scientific research, transportation, and other applications.

Technical Specifications

Function Item	Technical Parameters	Remarks
Power supply	① Built-in 12.6V lithium battery pack, 10Ah capacity; ② External 18V/30W flexible foldable solar panel; ③ External 24V DC power supply	Solar panel and 24V DC input can both power the device and charge the internal battery
Power consumption	Test conditions: ① Standard five parameters (wind speed, wind direction, temperature, humidity, pressure); ② 4G communication enabled but no data transmission	Screen on: 4W / 12.6V; Screen off: 2.4W / 12.6V
Charging time	< 10 hours, max charging current 1A
Operating time	50 hours (screen off mode)
Display	7-inch resistive touchscreen
Data storage	Built-in storage up to 512MB, supports up to 1,000,000 data records	Logging interval adjustable, minimum 1 minute
Data upload	Minimum upload interval: 1 minute
Data access	① Cloud web platform ② Mobile app ③ Touchscreen display
Communication methods	Wireless: 4G (Cat-1); Wired: RS485
Communication protocols	Modbus, MQTT, proprietary protocol	Can be customized
Operating environment	Temperature: -20°C to 70°C; Humidity: 0-100% RH	Optional ultra-low-temperature touchscreen: -40°C to 70°C
Protection rating	IP65 (fully waterproof)
Mounting stand	Height: 0.9 m (collapsed) to 1.9 m (extended); Material: aluminum alloy + ABS plastic; Surface treatment: anodized + passivated
Product weight	Main unit: 3.9 kg; Stand: 2.0 kg; Packaging box: 7.6 kg
Package dimensions	710 mm × 420 mm × 240 mm

Environmental Measurement Parameters

Environmental Parameter	Range	Accuracy	Resolution
Ultrasonic wind speed	0-70 m/s	Starting wind speed ≤ 0.8 m/s; ±(0.5 + 0.02 rdg) m/s	0.01 m/s
Ultrasonic wind direction	0-360°	±3°	1°
Atmospheric temperature	-40 to 80°C	±0.3°C	0.1°C
Atmospheric humidity	0-100% RH	±5% RH	0.1% RH
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa
Rainfall intensity	0-4 mm/min	±4% (laboratory static test, rainfall intensity 2 mm/min), with daily rainfall accumulation	0.03 mm
Illuminance	0-200,000 Lux (outdoor)	±4%	1 Lux
Solar total radiation	0-2000 W/m²	±3% (with daily radiation accumulation)	1 W/m²
CO₂	0-5000 ppm	±(50 ppm + 5% rdg)	1 ppm
PM2.5 / PM10	0-1000 μg/m³	≤100 μg/m³: ±10 μg/m³; >100 μg/m³: ±10% rdg (calibrated with TSI 8530 under 25±2°C, 50±10% RH)	1 μg/m³
CO	0-1000 ppm	≤±3% rdg (25°C)	0.1 ppm
NO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
SO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
O₃	0-10 ppm	≤±3% rdg (25°C)	0.01 ppm
Electronic compass	0-360°	±5°	1°
GPS	Longitude (-180-180°), Latitude (-90-90°), Altitude (-500-9000 m)	≤10 m (longitude/latitude), ≤3 m (altitude)	0.1 s (lat/long), 1 m (altitude)
