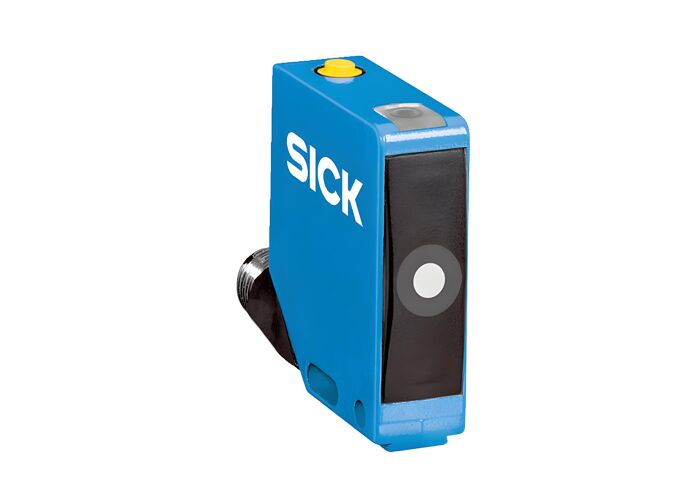

UC12 Ultrasonic distance sensors

UC12 ultrasonic distance sensor

Ultrasonic transducer sensor with warranty

Distance measurement sensor UC12

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Intervallo limite::

250 mm / 350 mm (a seconda del tipo)

Campo di funzionamento::

20 mm ... 250 mm (a seconda del tipo)

Ripetibilità:

±0,15%

Risoluzione:

≥ 0,1 mm

Tempo di risposta:

30 ms

Evidenziare:

UC12 ultrasonic distance sensor

Ultrasonic transducer sensor with warranty

Distance measurement sensor UC12

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

UC12 Ultrasonic distance sensors

Ottieni il miglior prezzo

UC30 Ultrasonic distance sensors

Ottieni il miglior prezzo

UD18 Ultrasonic distance sensors

Ottieni il miglior prezzo

UM12 Ultrasonic distance sensors

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

UC12 Ultrasonic Distance Sensors

The UC12 ultrasonic distance sensor family features ultrasonic technology housed in an industry-proven design. These rugged cubic metal housing sensors combine ease of use with the reliability of ultrasonic technology, offering complementary digital outputs with IO-Link for maximum flexibility.

Key Benefits

Proven cubic housing shape ensures compatibility with other technologies
High flexibility through IO-Link enables dynamic adaptation to changing application requirements
Complementary digital outputs detect cable breakage to prevent production errors
Integrated temperature compensation maintains high measurement accuracy for optimal process quality
Immunity to external factors allows reliable measurements in dirty, dusty, humid, and foggy conditions

Product Features

Rugged and proven housing design
Fast teach-in of complementary digital outputs via pushbutton or IO-Link
Optimal background suppression
Integrated temperature compensation
Detection, measurement, or positioning with ultrasound technology
Reliable performance regardless of material color, transparency, gloss, or ambient light

Technical Parameters

Category	Details
Measuring Range	Operating range: 20 mm ... 250 mm (depending on type) Limiting range: 250 mm / 350 mm (depending on type)
Resolution	≥ 0.1 mm
Repeatability	± 0.15 %
Response Time	30 ms
Output Time	8 ms
Switching Frequency	25 Hz
Digital Output	Type: Push-pull:PNP/NPN / PNP / NPN (depending on type)
IO-Link	✓, IO-Link V1.1
Enclosure Rating	IP65 / IP67
Sending Axis	Straight
Ambient Temperature, Operation	-25 °C ... +70 °C

Model Selection

Product Variant	Part No.	Min. Measuring Range	Max. Measuring Range	Measuring Frequency
UC12-1223E	6077703	55 mm	250 mm	500 kHz
UC12-1123E	6077702	20 mm	150 mm	380 kHz
