Pointek CLS200 - Digital

Pointek CLS200 ultrasonic sensor

digital ultrasonic transducer

CLS200 level sensor

Marca:

SIEMENS

Numero di modello:

CLS200 - Digitale

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Principio di misurazione:

Rilevamento del livello capacitivo con spostamento di frequenza inverso

Variabile misurata:

Variazione in picoFarad (pF)

Produzione:

Galvanicamente isolato

Protezione:

Contro polarità invertita (bipolare)

Corrente massima del carico:

82 mA

Evidenziare:

Pointek CLS200 ultrasonic sensor

digital ultrasonic transducer

CLS200 level sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Pointek CLS300 - Standard

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

Pointek CLS200 - Digital Level Detection Switch

The Pointek CLS200 (digital version) is a versatile inverse frequency shift capacitance level and material detection switch with optional rod/cable choices and configurable output. Ideal for detection of liquids, solids, slurries, foam, and interfaces with the ability to tune out buildup on the probe. The digital version includes PROFIBUS PA, an LCD display, and advanced diagnostic features.

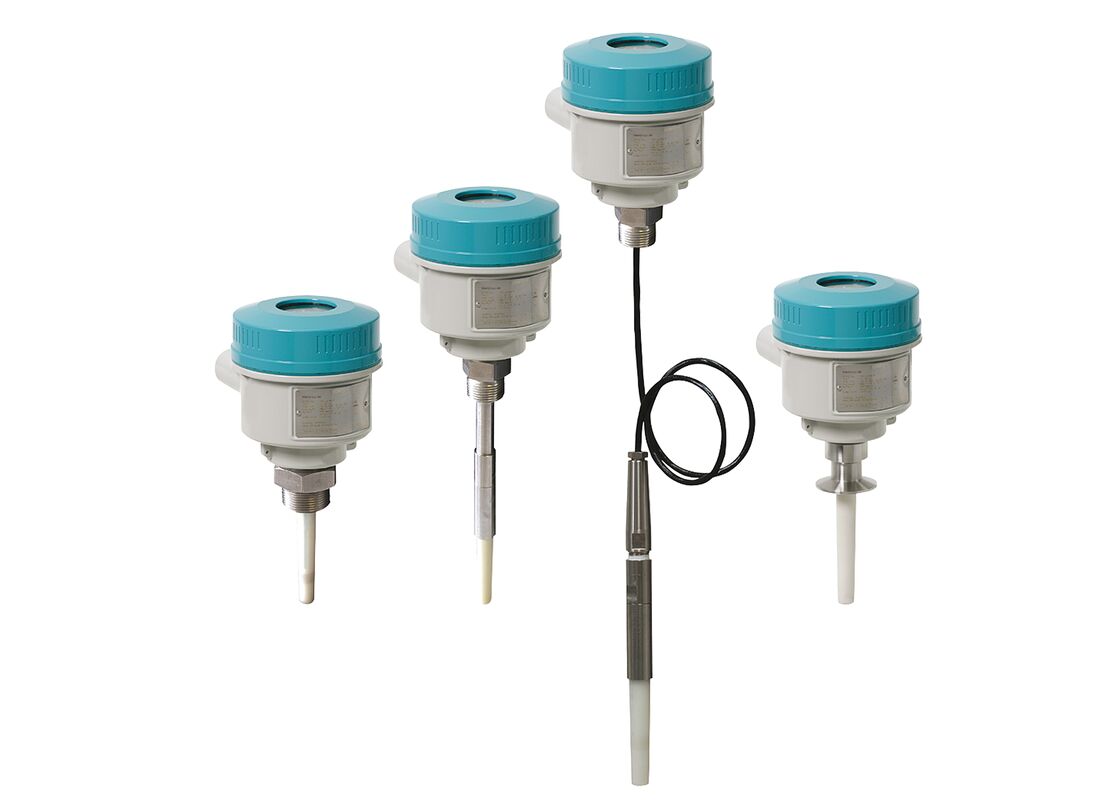

Product Images

7ML5640-.....-.... | 7ML5641-.....-.... | 7ML5642-.....-.... | 7ML5643-.....-.... | 7ML5644-.....-....

Key Benefits

Potted construction protects signal circuit from shock, vibration, humidity, and/or condensation
High chemical resistance for demanding industrial environments
Level detection independent of tank or pipe earth reference
Insensitive to product buildup due to high frequency oscillation
High sensitivity allows installation in wide range of liquids, solids or slurry applications
Integral LCD display enables easy menu-driven setup and configuration
PROFIBUS PA communication with SIMATIC PDM compatibility

Applications

Pointek CLS200 digital version provides an integral LCD display for stand-alone use, and PROFIBUS PA communication (Profile version 3.0, Class B) for network connectivity. The power supply is galvanically isolated and accepts a wide voltage range (12 to 30 V DC). With thermal isolator, the stainless steel and PPS (PVDF optional) probe construction provides temperature rating up to 125°C (257°F) on process-wetted portions.

The switch detects materials with dielectric constant of 1.5 or higher by monitoring changes in oscillating frequency, configurable for detection before contact or on contact with the probe. Menu-driven setup provides precise control of switch point, signal damping, and alarm functions. Advanced diagnostics and setup are available when connected to PROFIBUS network using SIMATIC PDM.

Key Application Areas:

Liquids and slurries
Powders and granules
Pressurized applications
Hazardous areas
Non-conductive vessels (concrete or plastic tanks)

Configuration Diagrams

Technical Specifications

Measuring Principle	Inverse frequency shift capacitive level detection
Measured Variable	Change in picoFarad (pF)
Output Signal	Solid-state output, galvanically isolated
Max. Switching Voltage	30 V DC / 30 V peak AC
Max. Load Current	82 mA
Ambient Temperature	-40 to +85°C (-40 to +185°F)
Process Temperature	-40 to +85°C without thermal isolator -40 to +125°C with thermal isolator
Process Pressure (Rod)	-1 to +25 bar g (-14.6 to +365 psi g)
Process Pressure (Cable)	-1 to +10 bar g (-14.6 to +150 psi g)
Dielectric Constant	Minimum 1.5
Degree of Protection	IP65/Type 4/NEMA 4 (optional IP68)
Power Supply	12-30 V DC (Standard), 12-24 V DC (Intrinsically Safe)
Communication	PROFIBUS PA (IEC 61158 CPF3 CP3/2)
Certifications	CSA, FM, CE, UKCA, RCM, ATEX, and various explosion-proof ratings

Related Products & Accessories

Part Number	Description
7ML1830-1JB	Cable Gland, 1/2" NPT, explosion proof
7ML1830-1JC	M20 x 1.5 cable gland (general use and dust explosion protection)
7ML1830-1JD	Cable Gland, M20 x 1.5 HF, (EP)
7ML1830-1JE	Test Magnet
7ML1830-1JF	Amplifier / Power Supply Digital Version
7ML1830-1JK	LCD Display for CLS 200, Digital
A5E01163672	Spare Synprene gasket, enclosure version, for IP65 versions
A5E01163673	Spare Silicone gasket, enclosure version, for IP68 version
A5E01163674	CLS200/CLS300/LC300 Spare aluminum blind lid, for standard versions
A5E01163676	CLS200/300 Spare aluminum lid with window
A5E01163677	Kit, sensor for cable units, PPS, standard, Viton
A5E01163678	Kit, sensor for cable units, PPS, digital, Viton
A5E01163679	Kit, sensor for cable units, PPS, standard, FFKM
A5E01163680	Kit, Sensor for cable units, PPS, Digital, FFKM
A5E01163681	Kit, Sensor for cable units, PVDF, Standard, FKM
A5E01163682	Kit, sensor for cable unit, PVDF, Digital, FKM
A5E01163683	Kit, sensor for cable unit, PVDF, Standard, FFKM
A5E01163684	Kit, sensor for cable unit, PVDF, Digital, FFKM
A5E01163685	Spare, 316L stainless steel mounting bracket
A5E01163686	Spare, PROFIBUS connector, IP65 versions only
A5E03251681	Kit, CLS200 standard, transmitter
