Name: KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FS1
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > Environmental Monitoring >

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Luogo di origine:

Cina

Marca:

KACISE

Certificazione:

Numero di modello:

KQS-FS1

Contattaci

Chiedi un preventivo

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Dettagli del prodotto

Intervallo di misurazione:

0-45 m/s (uscita analogica) / 0-70 m/s (uscita digitale/a impulsi)

Velocità del vento iniziale:

≤ 0,8 m/sec

Precisione:

±(0,5 + 0,02 V) m/s

Risoluzione:

0,1 m/s

Alimentazione elettrica:

Ampia tensione da 5 V o 9-30 V CC opzionale

Uscita del segnale:

4-20 mA / 0-20 mA, 0-2,5 V / 0-5 V / 1-5 V, RS485 / RS232 opzionale

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una scatola individuale, tutte le scatole sono imballate in pacchi standard o su richi

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabili

Prodotti correlati

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Ottieni il miglior prezzo

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Ottieni il miglior prezzo

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Ottieni il miglior prezzo

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

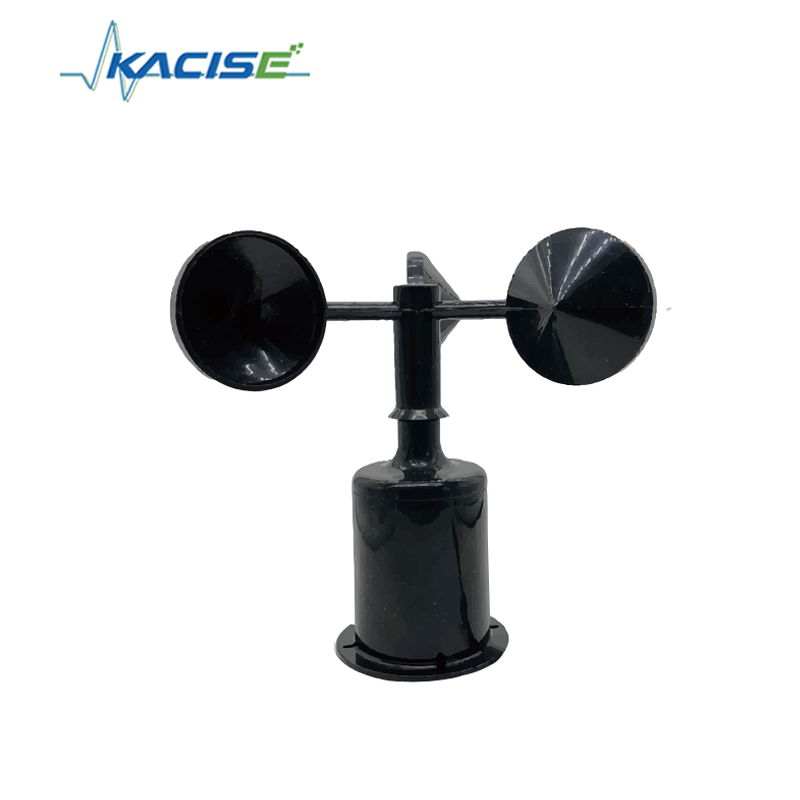

KQS-FS1 Wind Speed Sensor

Product Overview

The KQS-FS1 wind speed sensor adopts a traditional three-cup anemometer structure. The wind cups are made of high-strength ABS material, providing excellent durability and low starting wind speed. The built-in signal processing unit can output corresponding wind speed signals according to user requirements, supporting RS485/RS232 communication, pulse output, voltage output, or current output.

This sensor is widely used in advertising barrier systems, meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation applications.

Product Features

Independently patented design and development; each sensor is calibrated in a wind tunnel
Uses high-quality bearings, ensuring low starting wind speed and stable performance
Easy to install, compatible with bottom or side cable outlet mounting

Technical Parameters

Item	Parameter
Measuring range	□ 0-45 m/s (current/voltage output) □ 0-70 m/s (pulse / RS485 / RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5V or optional 9-30V wide-voltage supply
Net weight	125 g
Signal output	Current: □ 4-20 mA / □ 0-20 mA Voltage: □ 0-2.5 V / □ 0-5 V / □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
