Teqwave F – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave F

Ultrasonic flow meter with warranty

Teqwave F concentration measurement device

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Contattaci

Chiedi un preventivo

Teqwave F – Ultrasonic concentration meter

Dettagli del prodotto

Max. Pressione di processo:

massimo 16 bar a 20 °C (232 psi a 68 °F)

Intervallo di temperatura media:

Da 0 a 100 °C (da 32 a 212 °F)

Intervallo di temperatura ambiente:

Da 0 a 50°C (da 32 a 122°F)

Sensore che alloggia materiale:

Acciaio inossidabile V4A 1.4571 (316 Ti)

Trasmettitore che alloggia materiale:

Alluminio anodizzato, Vetro

Grado di protezione:

Sensore: IP68 (con cavo collegato)

Evidenziare:

Ultrasonic concentration meter Teqwave F

Ultrasonic flow meter with warranty

Teqwave F concentration measurement device

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Prosonic Flow E 100 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 300 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 500 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow I 400 ultrasonic flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

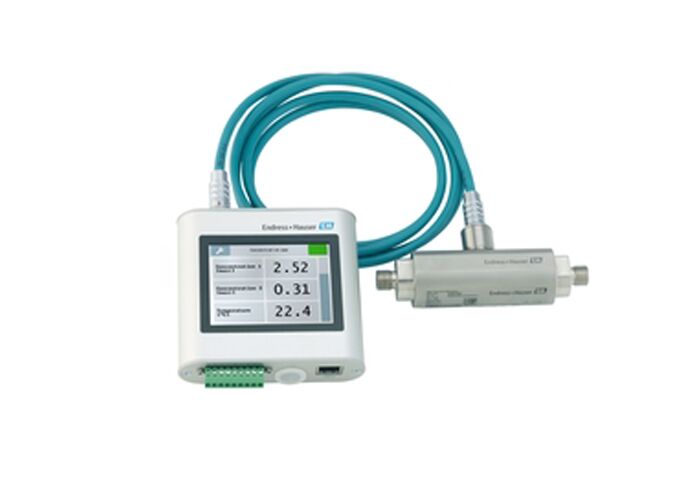

Teqwave F – Ultrasonic Concentration Meter

Smart, flexible inline measuring device designed specifically for your industrial process requirements.

Overview

The Teqwave F ultrasonic concentration meter provides real-time liquid analysis in pipes, delivering precise in situ concentration measurement for industrial applications.

Key Benefits

Easy and efficient real-time in situ liquid analysis
Full transparency with constant monitoring of product quality without sampling
Highest process safety through robust, maintenance-free sensor design
Cost-saving with fewer measuring points due to multivariable measurement
Customized usage with innovative application concept for changing measuring tasks
Simplified process control with user-friendly operation and clear status visualization
Local data backup with integrated storage for measured values up to 7.5 years

Technical Specifications

Parameter	Specification
Measuring Principle	Ultrasonic concentration
Nominal Diameter Range	DN 8 (1/4") to DN 25 (1")
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Max. Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Max. process pressure: 16 bar at 20°C (232 psi at 68°F) Medium temperature: 0 to 100°C (32 to 212°F) Ambient temperature: 0 to 50°C (32 to 122°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti)
Housing Materials	Sensor: Stainless steel V4A 1.4571 (316 Ti) Transmitter: Anodized aluminium, Glass
Degree of Protection	Sensor: IP68 (with plugged-in cable) Transmitter: IP40

Device Features

Sensor Features

Full-bore design without pressure loss
Robust, maintenance-free operation
Multivariable measurement capability

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Integrated data storage for measured values

Electrical Specifications

Parameter	Specification
Display/Operation	LED status indication, TFT color touch display
Outputs	Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 to 10V Analog output
Inputs	2 digital inputs for display and output configuration
Power Supply	DC 24V ±20%

Certifications & Approvals

CE, UKCA, RCM - Approved for non-hazardous areas

Applications

Ideal for real-time liquid analysis in pipes, particularly in skids. Perfect for equipment manufacturers and end customers requiring accurate in situ concentration measurement with flexible application range definition.
