Name: Proline Prosonic Flow B 200 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonic Flow B200
Price: 892.00 USD
Availability: InStock

Casa. > prodotti > misuratore di portata ultrasonico >

Proline Prosonic Flow B 200 ultrasonic flowmeter

Proline Prosonic ultrasonic flowmeter

B 200 ultrasonic flow meter

industrial ultrasonic flowmeter with warranty

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Numero di modello:

Proline Prosonic Flow B200

Contattaci

Chiedi un preventivo

Proline Prosonic Flow B 200 ultrasonic flowmeter

Dettagli del prodotto

Trasmettitore che alloggia materiale:

AlSi10Mg, rivestito; 1,4404 (316L)

Grado di protezione:

IP66/67, tipo recinzione di 4X

Input:

Corrente di ingresso 4‐20 mA (passivo)

Comunicazione di Digital:

Hart

Approvazioni di zone pericolose:

ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN, EAC

Certificati materiali:

3.1 materiale (parti bagnate)

Evidenziare:

Proline Prosonic ultrasonic flowmeter

B 200 ultrasonic flow meter

industrial ultrasonic flowmeter with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Prosonic Flow E 100 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 300 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 500 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow I 400 ultrasonic flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

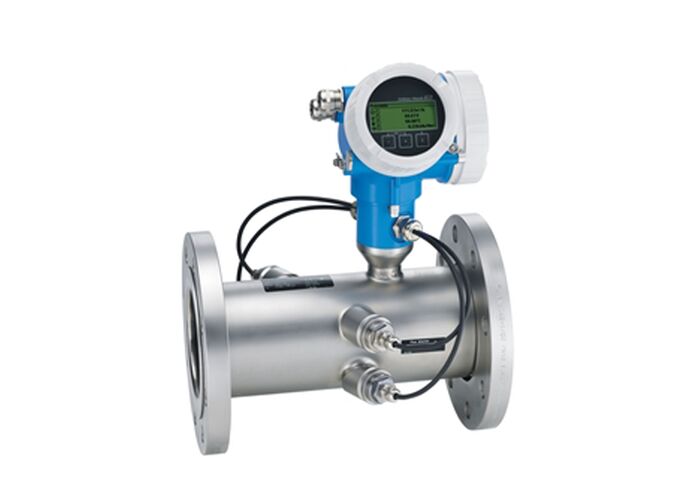

Proline Prosonic Flow B 200 Ultrasonic Flowmeter

The Proline Prosonic Flow B 200 is a specialized ultrasonic flowmeter designed for accurate and reliable measurement of wet biogas and digester gas, even under fluctuating process conditions.

Key Innovation

With unique integrated real-time methane fraction analysis, this device enables continuous measurement and monitoring of gas flow as well as gas quality. The measuring principle is unaffected by gas composition.

Field of Application

Inline flowmeter specifically designed for wet biogas and digester gas measurement under fluctuating process conditions. Enables efficient process control, energy balancing, and ensures compliance and process safety through Heartbeat Technology.

Key Benefits

Integrated real-time methane fraction measurement
Optimized for low pressure gas with specialized sensor design
No additional pressure loss - full bore design
Enhanced process transparency through diagnostic capability
Convenient device wiring with separate connection compartment
Safe operation - no need to open device due to display with touch control and background lighting
Integrated verification via Heartbeat Technology

Technical Specifications

Measuring Principle

Ultrasonic flow measurement

Device Properties

Multivariable device: flow, temperature and methane
Loop-powered technology
Robust dual-compartment housing
Worldwide approvals for plant safety

Performance Specifications

Parameter	Specification
Measuring Range (Standard)	1 to 30 m/s (3.28 to 98.4 ft/s)
Measuring Range (Option)	0.3 to 30 m/s (0.98 to 98.4 ft/s)
Medium Temperature Range	0 to +80 °C (+32 to +176 °F)
Maximum Process Pressure	11 bar a (159 psi a)
Process Pressure Range	0.7 to 11 bar a (10.2 to 159 psi a)

Measurement Accuracy

Volume Flow Type	Accuracy
Standard Volume Flow	±1.5% o.r. for 3 to 30 m/s (9.84 to 98.4 ft/s) ±3% o.r. for 1 to 3 m/s (3.28 to 9.84 ft/s)
Optional Volume Flow	±0.1% o.f.s. for 0.3 to 1 m/s (0.98 to 3.28 ft/s) ±1.5% o.r. for 1 to 30 m/s (3.28 to 98.4 ft/s)

Nominal Diameter Range

Single-path version: DN 50 (2"), DN 80 (3")
Two-path version: DN 100 to 200 (4 to 8")

Measured Variables

Volume flow, corrected volume flow, corrected methane volume flow, energy flow, methane fraction, calorific value, temperature

Wetted Materials

Sensor: 1.4404/1.4435 (316L)
Transducer: HNBR
Temperature sensor (option): AFM 34

Environmental Specifications

Parameter	Specification
Ambient Temperature (Carbon Steel)	-10 to +60 °C (+14 to +140 °F)
Ambient Temperature (Stainless Steel)	-40 to +60 °C (-40 to +140 °F)
Transmitter Housing Material	AlSi10Mg, coated; 1.4404 (316L)
Degree of Protection	IP66/67, type 4X enclosure

Electrical Specifications

Component	Specification
Display/Operation	4-line backlit display with touch control (operation from outside)
Outputs	4-20 mA HART (passive), 4-20 mA (passive), Pulse/frequency/switch output (passive)
Inputs	Current input 4-20 mA (passive)
Digital Communication	HART
Power Supply	Multiple configurations: DC 12-35V, DC 12-30V, DC 9-32V depending on output type

Certifications and Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, JPN, EAC
Metrological: Calibration performed on accredited facilities (ISO/IEC 17025)
Pressure: PED
Material: 3.1 material certificates (wetted parts)
