Name: Picomag Inline electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Picomag in linea
Price: 2,540.00 USD
Availability: InStock

Casa. > prodotti > Misuratore di portata elettromagnetico >

Picomag Inline electromagnetic flowmeter

Picomag electromagnetic flow meter

Inline electromagnetic flowmeter with warranty

Electromagnetic flow meter for liquids

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Numero di modello:

Picomag in linea

Contattaci

Chiedi un preventivo

Picomag Inline electromagnetic flowmeter

Dettagli del prodotto

Trasmettitore che alloggia materiale:

1.4404/316L, Policarbonato

Grado di protezione:

IP65/67

Esposizione/operazione:

Display integrato, funzionamento tramite tecnologia Bluetooth

Input:

Stato

Evidenziare:

Picomag electromagnetic flow meter

Inline electromagnetic flowmeter with warranty

Electromagnetic flow meter for liquids

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Promass S 300 Coriolis flowmeter

Ottieni il miglior prezzo

Proline Promass P 500 Coriolis flowmeter

Ottieni il miglior prezzo

Proline Promass Q 300 Coriolis flowmeter

Ottieni il miglior prezzo

Proline t-mass F 500 thermal mass flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

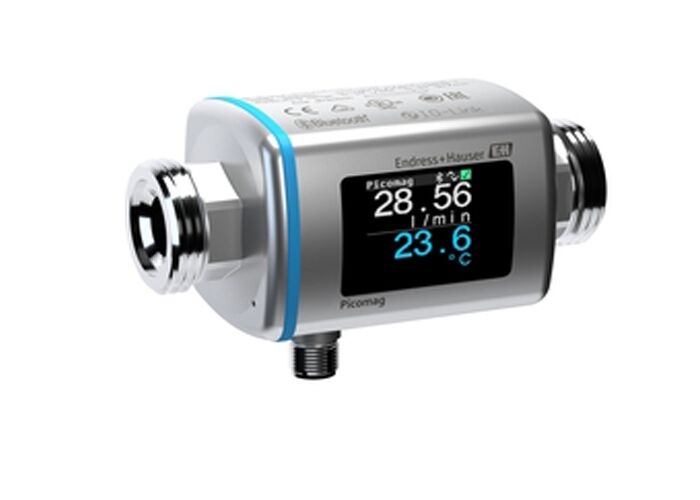

Picomag Inline Electromagnetic Flowmeter

The Picomag Inline is an economical electromagnetic flowmeter designed for conductive liquids in secondary circuits across all industries. This space-saving solution offers flexible installation capabilities and intuitive operation via the SmartBlue app on Bluetooth-enabled devices.

Key Features

Bidirectional measuring principle independent of pressure, density, temperature, and viscosity
Simultaneous measurement of flow, conductivity, and temperature
Wireless remote access via Bluetooth SmartBlue app
High shock and vibration resistance with IP65/67 protection
Empty pipe detection capability
Large 1.4" TFT color display with backlight

Technical Specifications

Nominal Diameter Range	DN15 to 50 (1/2" to 2")
Measuring Range	Up to 750 l/min
Maximum Measurement Error	Volume flow: ±0.8% o.r. ±0.1% o.f.s.
Maximum Process Pressure	16 bar
Medium Temperature Range	-10 to 70°C (+14 to +158°F) Permissible short-term temperature: 85°C (185°F) maximum one hour, repetition after 4 hours at earliest
Ambient Temperature Range	-10 to 60°C
Wetted Materials	PEEK, Stainless Steel, FKM, EPDM Electrodes: 1.4404/316L
Measured Variables	Volume flow, Temperature, Conductivity

Device Properties

Sensor Features

Reduced measuring points with simultaneous flow, conductivity and temperature measurement
Compact design for tight spaces (skids, equipment)
Sensor and transmitter integrated in single housing
High shock and vibration resistance
IP65/67 degree of protection
Empty pipe detection

Transmitter Features

Quick offline configuration check with knock functionality
Intuitive SmartBlue app eliminates need for manuals
Effortless multi-device configuration with saved settings
Flexible fieldbus integration with plug-and-play IO-Link
Wireless Bluetooth remote access
Multiple I/O options for all line sizes
1.4" TFT color display with backlight

Outputs	Current (4-20mA), Pulse, Switch, Voltage (2-10V)
Inputs	Status
Digital Communication	IO-Link
Power Supply	18 to 30V DC
Product Safety	cULus listing
Hygienic Approvals	Drinking water approvals: NSF
