Name: Deltabar PMD55B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Deltabar PMD55B
Price: 152.00 USD
Availability: InStock

Casa. > prodotti > Sensore di pressione di precisione >

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Numero di modello:

Deltabar PMD55B

Contattaci

Chiedi un preventivo

Deltabar PMD55B - differential pressure transmitter

Dettagli del prodotto

Precisione:

minimo: fino allo 0,05%

Platino::

fino allo 0,025%

Campo di misurazione della pressione:

400 mbar...700 bar(1,5 psi...10.500 psi)

Parti bagnate principali:

316L, lega C, tantal, monel, PTFE, oro

Membrana di processo del materiale:

316L, lega C, tantal, monel, PTFE, oro

Cella di misura:

400 mbar...700 bar(6 psi...10.500 psi)

Evidenziare:

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Deltabar PMD55B - differential pressure transmitter

Ottieni il miglior prezzo

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Ottieni il miglior prezzo

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Ottieni il miglior prezzo

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

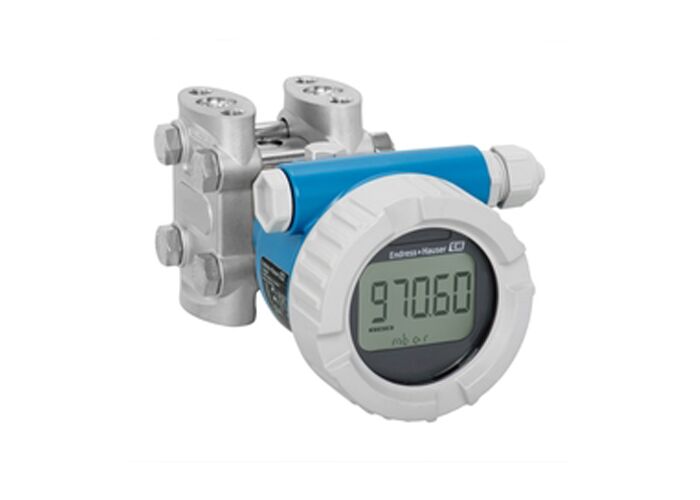

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
