Name: Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWS-190
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > sensore di qualità dell'acqua >

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Luogo di origine:

Cina

Marca:

kacise

Certificazione:

Numero di modello:

KWS-190

Contattaci

Chiedi un preventivo

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

Dettagli del prodotto

Peso:

1 kg (senza cavo)

Intervallo di misurazione:

0-500 mg/l; 0-1500mg/l

Precisione:

±5%FS (0-500 mg/l); ±10%FS (500-1500 mg/l)

Risoluzione:

0,1 mg/l; 0,1NTU

Alimentazione elettrica:

12~24VDC

Evidenziare:

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

Ottieni il miglior prezzo

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Ottieni il miglior prezzo

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

Ottieni il miglior prezzo

Misuratore di Ossigeno Disciolto Ottico Online a Parete con Campo di Misura 0,00-20,00 mg/L, Accuratezza ±2% F.S. e Risoluzione 0,01 mg/L

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

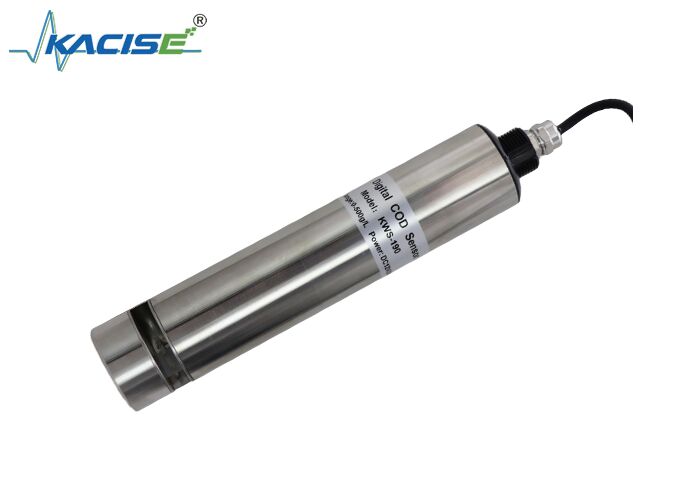

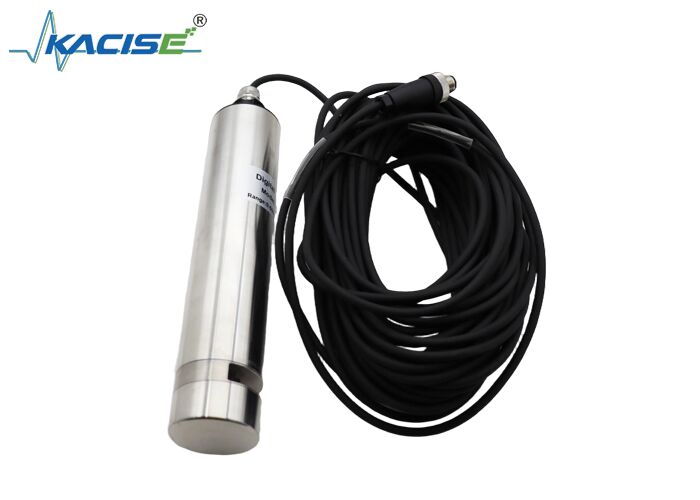

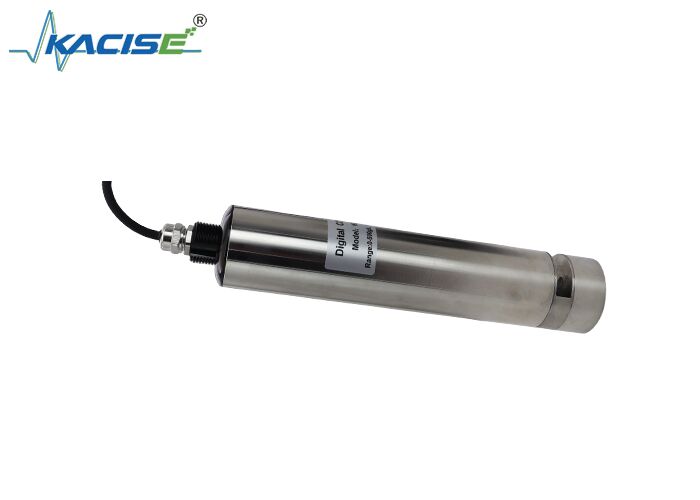

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
