DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Marca:

Yokogawa

Numero di modello:

DM8

Contattaci

Chiedi un preventivo

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Dettagli del prodotto

Intervallo di misurazione:

Densità: da 0,5 a 2,0 g/cm3

Misurare la temperatura del liquido:

-10 a 100 ℃

Misurare la pressione del liquido:

2 mpa g o meno

pressione withstandable:

4.9 MPA g

Span del segnale di uscita:

Da 0,05 a 0,5 g/cm3 impostabile

Evidenziare:

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ottieni il miglior prezzo

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Ottieni il miglior prezzo

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Ottieni il miglior prezzo

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

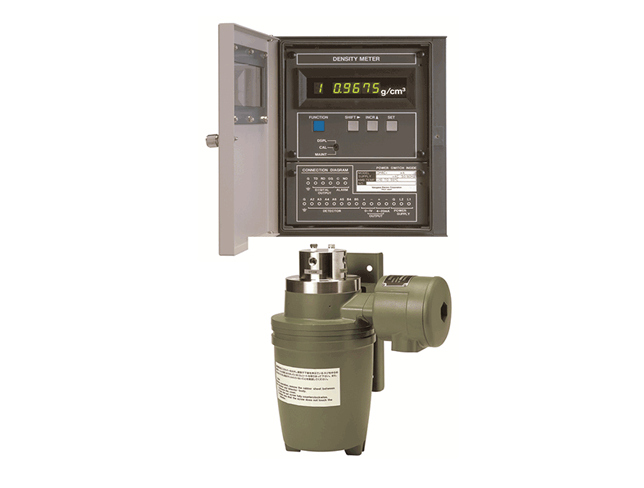

Liquid Density Analyzer DM8C, VD6

Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:

Key Features

High sensitivity and stability for reliable measurements
One-touch calibration using standard solution
Field-configurable measuring range
Failure alarm display and output
Outdoor-rated converter installation

The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.

Technical Specifications

Measurement Object	Liquid density
Measurement Principle	Vibration density measurement
Measurement Range	0.5 to 2.0 g/cm³
Operating Conditions	Liquid temperature: -10 to 100℃ Liquid pressure: ≤2 MPa G Withstandable pressure: 4.9 MPa G
Output Signals	Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ) Digital: RS-232C
Performance	Linearity: ±0.5% of span (≤0.2 g/cm³) Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog)
Physical Specifications	Converter weight: 7.5 kg Detector weight: 12.0 kg Enclosure: Dust and rain proof
Power Requirements	90-132V AC or 180-264V AC, 50/60Hz
