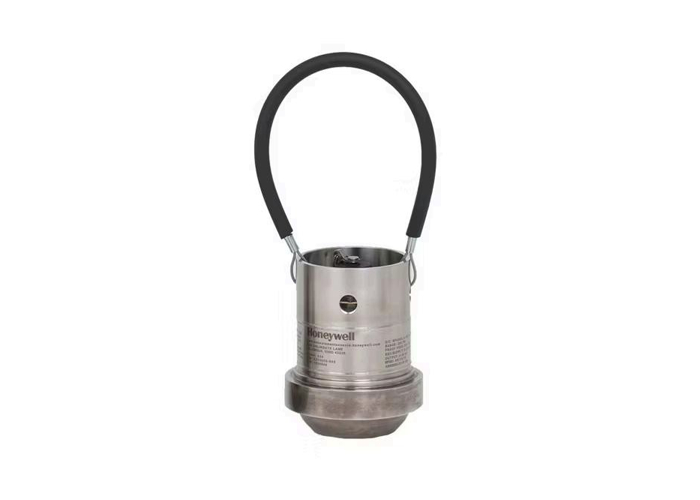

Name: Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modello 434
Price: 152.00 USD
Availability: InStock

Casa. > prodotti > Sensore di pressione di precisione >

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Marca:

Honeywell

Numero di modello:

Modello 434

Contattaci

Chiedi un preventivo

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

Dettagli del prodotto

Apertura standard.:

Da 0 PSI a 20.000 PSI

Precisione:

±0,2%FSSBFSL

Produzione:

Da 4 mA a 20 mA, a 2 fili

Temperatura, funzionamento:

-40 °C a 125 °C [-40 °F a 257 °F]

Temperatura, compensata:

Da -40 °C a 85 °C [da -40 °F a 185 °F]

Parti bagnate:

Inconel® 718 (conforme NACE)

Evidenziare:

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Ottieni il miglior prezzo

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Ottieni il miglior prezzo

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Ottieni il miglior prezzo

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

Honeywell Model 434 Wing Union Pressure Transducers

Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.

Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.

Value to Customers

Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.

Differentiators

High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
Protective cage option available.
Welded construction for enhanced durability.

Part Numbers

Part Number	Description
060-P774-01	BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01	BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01	BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01	BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01	BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
