Name: KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV654-B
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > sensore di qualità dell'acqua >

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Luogo di origine:

Cina

Marca:

KACISE

Certificazione:

Numero di modello:

KSLV654-B

Contattaci

Chiedi un preventivo

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Dettagli del prodotto

Lunghezza ordine L:

50-2000 mm

Metodo di montaggio:

Filettato M27*2 o M20*1,5

Deriva della temperatura:

≤0,02% FS/℃ (tra -40 e 80℃)

Livello di protezione:

IP65

Materiale della sonda:

PFA

Diametro della sonda:

∅10 mm

Materiale della vite di fissaggio:

PTFE

Lunghezza dell'ordine:

50-2000 mm

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

KSLV651-A Sensore di livello intelligente compatto con protezione IP68 FEP materiale di sonda e stabilità a lungo termine ≤ 0,1% FS/anno

Ottieni il miglior prezzo

Sensore di livello dell'acqua per radar KWL800 con frequenza di misura di 80 GHz, gamma di misurazione di 20 m e protezione IP68

Ottieni il miglior prezzo

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Ottieni il miglior prezzo

KSLV654-A Corrosion-Resistant Industrial Level Sensor with IP68 Protection and Multiple Signal Outputs

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

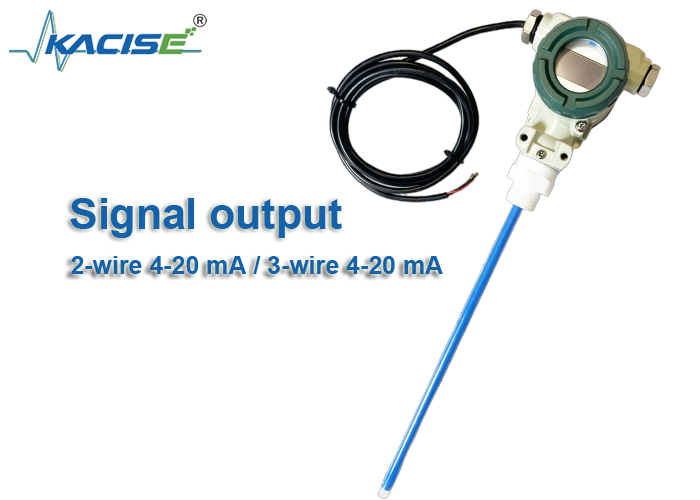

KSLV654-B Industrial Standard Capacitive Level Sensor

The KSLV654-B is a robust industrial capacitive level sensor designed for reliable and continuous liquid level measurement in standard industrial environments. Featuring a high-performance PFA probe and PTFE housing and screws, the sensor provides excellent corrosion resistance and durability, making it suitable for chemical, water treatment, and general industrial applications.

With support for 2-wire or 3-wire 4–20 mA output, the KSLV654-B can be easily integrated into PLC, DCS, or other automation systems, providing precise and stable level monitoring. Its wide operating temperature range, high accuracy, and compact design make it an ideal choice for versatile industrial liquid level measurement.

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output 0

Product Features

High-Precision Measurement
Advanced capacitive measurement technology delivers accuracy up to Class 0.5, with absolute error as low as ±3 mm, ensuring reliable and precise liquid level readings.

Wide Temperature Adaptability

Measurement temperature: -40 to 120℃
Probe temperature resistance: -60 to 150℃
Suitable for both low- and high-temperature industrial conditions.

Corrosion-Resistant Design

Probe material: PFA
Housing and fixing screws: PTFE
Provides excellent resistance to chemical corrosion and long-term durability.

Multiple Signal Output Options
Supports 2-wire or 3-wire 4–20 mA output, allowing flexible integration with industrial control systems.

High Stability and Low Drift

Long-term stability: ≤0.1% FS/year
Temperature drift: ≤0.02% FS/℃
Ensures consistent and reliable performance over time.

Flexible Installation

Threaded mounting: M27*2 or M20*1.5
Suitable for various tank types and installation environments.

Protection Against Harsh Conditions

Protection level: IP65, suitable for industrial environments with dust and water exposure.

Multiple Measuring Length Options
Measuring length: 50–2000 mm, meeting different container and tank requirements.

Typical Applications

Chemical Processing Industry
Water Treatment Systems
Storage Tank Level Monitoring
Industrial Automation Equipment
Food and Beverage Industry
Pharmaceutical Industry

Technical Parameters

Technical Parameter	Description
Order Length L	50-2000 mm
Accuracy	Absolute error ±3 mm (L ≤ 300 mm), Accuracy class 1.0 (300 < L ≤ 700 mm), Accuracy class 0.5 (700 < L ≤ 2000 mm)
Measurement Temperature	-40 to 120℃
Probe Temperature Resistance	-60 to 150℃
Signal Type	2-wire 4-20 mA / 3-wire 4-20 mA
Supply Voltage	18-36 Vdc, Typical 24 Vdc
Pressure Range	-0.1 to 0.6 MPa
Long-term Stability	≤0.1% FS / year
Temperature Drift	≤0.02% FS/℃ (within -40 to 80℃)
Protection Level	IP65
Probe Material	PFA
Probe Diameter	∅10 mm
Fixing Screw Material	PTFE
Mounting Method	Threaded M272 or M201.5
Dimensional Tolerance	±3 mm
