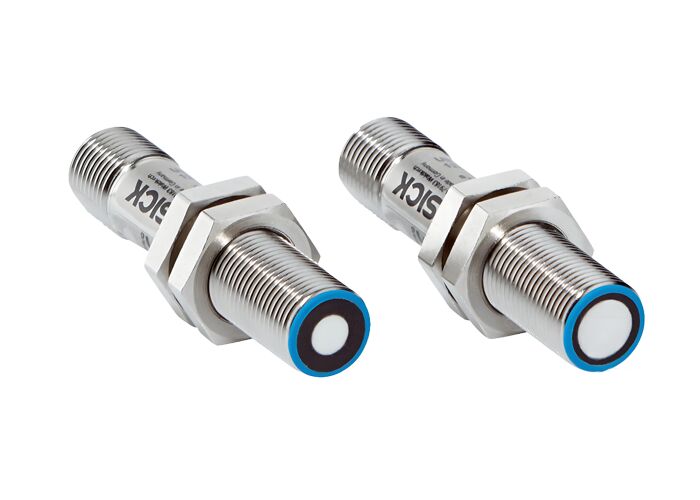

UM12 Ultrasonic distance sensors

UM12 ultrasonic distance sensor

water quality distance sensor

ultrasonic sensor with warranty

Marca:

SICK

Numero di modello:

UM12

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Campo di funzionamento::

20 mm ... 240 mm (a seconda del tipo)

Intervallo limite::

250 mm / 350 mm (a seconda del tipo)

Ripetibilità:

±0,15%

Risoluzione:

≥ 0,069 mm

Frequenza di commutazione:

30 Hz / 25 Hz (a seconda del tipo)

Tempo di uscita:

8 ms ... 10 ms (a seconda del tipo)

Evidenziare:

UM12 ultrasonic distance sensor

water quality distance sensor

ultrasonic sensor with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

UC12 Ultrasonic distance sensors

Ottieni il miglior prezzo

UC30 Ultrasonic distance sensors

Ottieni il miglior prezzo

UD18 Ultrasonic distance sensors

Ottieni il miglior prezzo

UM12 Ultrasonic distance sensors

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

UM12 Ultrasonic Distance Sensors

The UM12 ultrasonic distance sensors combine compact dimensions with rugged metal housing construction. Available with various output signals including IO-Link interface, these sensors provide maximum flexibility in tight installation spaces.

Key Advantages

Compact housing dimensions for straightforward machine integration
Proven M12 housing design ensures compatibility with other technologies
Rugged, one-piece metal housing for maximum plant availability
Teach-in via cable and IO-Link prevents unintentional sensor adjustment
Integrated temperature compensation ensures high measurement accuracy
Immunity to external factors enables reliable operation in dirty, dusty, humid, and foggy conditions

Product Features

Short and rugged M12 metal housing
Wide variety of interfaces and IO-Link compatibility
Optimal background suppression
Integrated temperature compensation
Detection, measurement, or positioning with ultrasound technology
Reliable performance regardless of material color, transparency, gloss, or ambient light

Technical Specifications

Parameter	Details
Measuring Range	Operating range: 20 mm ... 240 mm (depending on type) Limiting range: 250 mm / 350 mm (depending on type)
Resolution	≥ 0.069 mm
Repeatability	± 0.15 %
Response Time	24 ms ... 30 ms
Output Time	8 ms ... 10 ms (depending on type)
Switching Frequency	30 Hz / 25 Hz (depending on type)
Analog Output	4 mA ... 20 mA, ≤ 500 Ω / 0 V ... 10 V, ≥ 100,000 Ω
Digital Output	Type: PNP / NPN / push-pull:PNP/NPN (depending on type)
IO-Link	✓, IO-Link V1.1
Enclosure Rating	IP65 / IP67
Sending Axis	Straight
Ambient Temperature	-25 °C ... +70 °C

Model Selection Guide

Product Variant	Part No.	Min. Range	Max. Range	Interface	Digital Output	Analog Output	Measuring Frequency	Switching Frequency	Response Time
UM12-11722B1	6077704	20 mm	150 mm	IO-Link	push-pull: PNP/NPN	-	380 kHz	30 Hz	24 ms
UM12-1172211	6053542	20 mm	150 mm	-	PNP	-	380 kHz	30 Hz	24 ms
UM12-1172271	6053545	20 mm	150 mm	-	-	voltage output	380 kHz	-	24 ms
UM12-11922B1	6077705	40 mm	240 mm	IO-Link	push-pull: PNP/NPN	-	500 kHz	25 Hz	30 ms
UM12-1192261	6053548	40 mm	240 mm	-	-	Current output	500 kHz	-	30 ms
UM12-1192271	6053549	40 mm	240 mm	-	-	voltage output	500 kHz	-	30 ms
UM12-1172251	6053543	20 mm	150 mm	-	NPN	-	380 kHz	30 Hz	24 ms
UM12-1192251	6053547	40 mm	240 mm	-	NPN	-	500 kHz	25 Hz	30 ms
UM12-1192211	6053546	40 mm	240 mm	-	PNP	-	500 kHz	25 Hz	30 ms
UM12-1172261	6053544	20 mm	150 mm	-	-	Current output	380 kHz	-	24 ms
