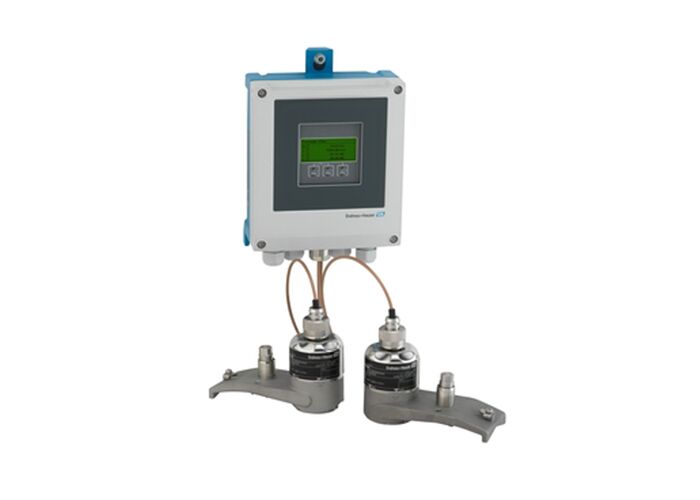

Name: Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonic Flow W 400
Price: 892.00 USD
Availability: InStock

Casa. > prodotti > misuratore di portata ultrasonico >

Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter

Prosonic ultrasonic clamp-on flowmeter

W 400 ultrasonic flow meter

Proline clamp-on flowmeter with warranty

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Numero di modello:

Proline Prosonic Flow W 400

Contattaci

Chiedi un preventivo

Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter

Dettagli del prodotto

Alimentazione elettrica:

CA da 100 a 240 V / CA/CC 24 V

Approvazioni:

cCSAus

Sicurezza del prodotto:

Marchio CE, marchio C-tick, marchio EAC

Comunicazione di Digital:

Hart

Evidenziare:

Prosonic ultrasonic clamp-on flowmeter

W 400 ultrasonic flow meter

Proline clamp-on flowmeter with warranty

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Prosonic Flow E 100 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 300 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 500 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow I 400 ultrasonic flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

Proline Prosonic Flow W 400 Ultrasonic Clamp-on Flowmeter

The Prosonic Flow W 400 is an advanced ultrasonic clamp-on flowmeter designed for safe, cost-effective, and maintenance-free measurement of conductive and non-conductive liquids in water, wastewater, process water, and hydropower applications.

Key Features

Non-invasive bidirectional flow measurement without process interruption
FlowDC technology enables minimal inlet runs (only 2 x DN)
Heartbeat Technology for continuous diagnostics, verification, and monitoring
Maintenance-free operation with special coupling pads
Web server for full remote access with local display for on-site operation

Technical Specifications

Measuring Principle	Ultrasonic Flow
Nominal Diameter Range	DN15 to 4000 (½" to 160")
Measuring Range	0 to 15 m/s (0 to 50 ft/s)
Max. Measurement Error	Volume Flow: ±3% o.r. for DN15 ±2% o.r. for DN25 to 200 ±2% o.r. above DN200
Medium Temperature	-40 to +130 °C (-40 to +266 °F)
Max. Process Pressure	N/A
Ambient Temperature	-40 to 130°C (all sensor sizes)

Sensor Details

Materials

Sensor Holder: 1.4301 (304), 1.4404 (316L)
Sensor Housing: 1.4301 (304), 1.4404 (316L)
Strapping Bands: 1.4301 (304), 1.4404 (316L)

Measured Variables

Volume flow, Flow velocity, Sound velocity

Transmitter Features

Housing & Protection

Wall-mounted housing: Polycarbonate or AlSi10Mg (coated)
Degree of Protection: IP66/67, Type 4X enclosure
Sensor Protection: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)

Display & Operation

4-line backlit display with touch control, configuration via local display, web browser, and operating tools

Inputs & Outputs

3 Outputs: 4-20 mA/4-20 mA HART (active), Pulse/frequency/switch output (passive), Pulse/frequency/switch output (passive), Modbus RS485
Inputs: Status input
Digital Communication: HART

Power Supply

AC 100 to 240 V / AC/DC 24 V

Certifications & Approvals

Product Safety: CE, C-tick marking, EAC-marking
cCSAus Approval
Metrological: Flowmeter verification for all frequencies except 0.3 MHz
Marine approvals available

Heartbeat Technology complies with measurement traceability requirements according to ISO 9001:2015 - Section 7.1.5.2 a
