Name: Proline Promass I 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolina Promass I 100
Price: 2,540.00 USD
Availability: InStock

Casa. > prodotti > Misuratore di portata elettromagnetico >

Proline Promass I 100 Coriolis flowmeter

Proline Promass I 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Numero di modello:

Prolina Promass I 100

Contattaci

Chiedi un preventivo

Proline Promass I 100 Coriolis flowmeter

Dettagli del prodotto

Comunicazione di Digital:

HART, Modbus RS485, EtherNet/IP, Profibus DP, PROFINET

Alimentazione elettrica:

Da 20 a 30 V CC

Approvazioni di zone pericolose:

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

Sicurezza del prodotto:

Marcatura CE, C-tick, EAC

Sensore che alloggia materiale:

1.4301/1.4307 (304L), resistente alla corrosione

Evidenziare:

Proline Promass I 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Promass S 300 Coriolis flowmeter

Ottieni il miglior prezzo

Proline Promass P 500 Coriolis flowmeter

Ottieni il miglior prezzo

Proline Promass Q 300 Coriolis flowmeter

Ottieni il miglior prezzo

Proline t-mass F 500 thermal mass flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

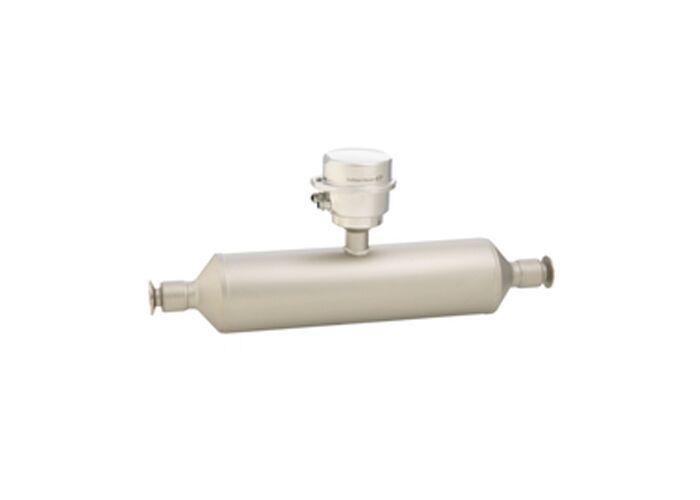

Proline Promass I 100 Coriolis Flowmeter

Combines in-line viscosity and flow measurement with an ultra-compact transmitter for applications requiring low pressure loss and gentle fluid treatment.

Field of Application

The straight single-tube design of the Promass I 100 provides standard Coriolis flowmeter outputs of mass flow, density and temperature, with optional in-line viscosity measurement. Combined with the smallest transmitter housing available, it delivers full performance on the smallest footprint. Ideal for system integrators, skid builders and equipment manufacturers.

Key Benefits

Energy-saving - full bore design enables minimal pressure loss
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in/outlet run needs
Space-saving transmitter - full functionality on smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology

Technical Specifications

Measurement Performance

Mass flow (liquid)	±0.1 %
Volume flow (liquid)	±0.1 %
Mass flow (gas)	±0.5 %
Density (liquid)	±0.0005 g/cm³

Operating Ranges

Measuring range	0 to 180,000 kg/h (0 to 6,600 lb/min)
Medium temperature	-50 to +150 °C (-58 to +302 °F)
Ambient temperature	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Nominal diameter	DN 8 to 80 (⅜ to 3")

Materials & Construction

Wetted materials	Measuring tube: Titanium grade 9 Connection: Titanium grade 2
Sensor housing	1.4301/1.4307 (304L), corrosion resistant
Transmitter housing	Compact: AlSi10Mg, coated Compact/ultra-compact: 1.4301 (304)

Pressure & Protection

Max. process pressure	PN 100, Class 600, 63K
Degree of protection	Standard: IP66/67, type 4X enclosure Option: IP69

Device Features

Sensor Features

Straight, easy-to-clean single-tube system
TMB® technology
Measuring tube made of Titanium
Robust, ultra-compact transmitter housing
High ingress protection: IP69K
Local display available

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Communication & I/O

Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply	DC 20 to 30 V

Certifications & Approvals

Hazardous area	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product safety	CE, C-Tick, EAC marking
Metrological	Calibration performed on accredited facilities (ISO/IEC 17025) Heartbeat Technology complies with ISO 9001:2015 requirements
Pressure	PED, CRN
Material	3.1 material certificate
Hygienic	3-A, EHEDG, cGMP
