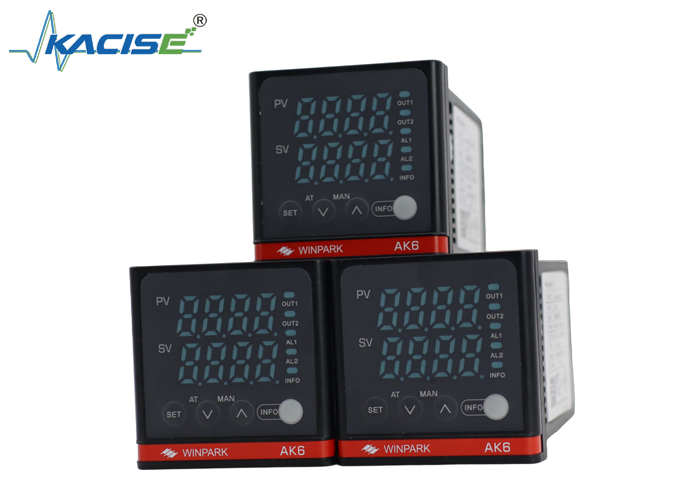

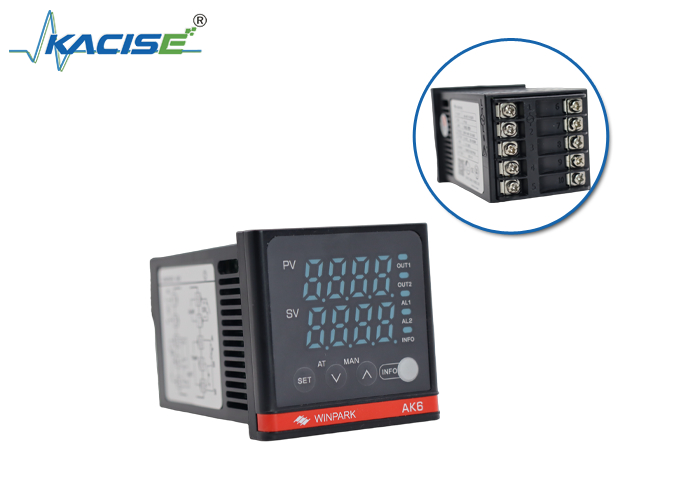

Name: AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: AK6-APL110-C007R
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > Temperature Sensor >

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

48×48 panel size Temperature Controller

RS485 communication Thermostat

Non-volatile memory Temperature Regulator

Luogo di origine:

Cina

Certificazione:

Numero di modello:

AK6-APL110-C007R

Contattaci

Chiedi un preventivo

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Dettagli del prodotto

Conservazione dei dati:

Memoria non volatile

Temperatura di conservazione:

-25°C–65°C (senza condensa o gelo)

Risoluzione:

1°C, 0,1°C (opzionale)

Metodo di cablaggio:

Collegamento terminale

Precisione di misurazione:

± 0,5%fs

Evidenziare:

48×48 panel size Temperature Controller

RS485 communication Thermostat

Non-volatile memory Temperature Regulator

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pezzo

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

86--17719566736

Contattaci ora

Descrizione del prodotto

AK6-APL110-C007R Series Temperature Controller

Electrical Specifications

Item	Specification
Rated Voltage	180V-240V AC, 50Hz
Power Consumption	≤5VA
Operating Environment	Ambient temperature: 0-50°C Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature	-25°C-65°C (no condensation or frost)
Resolution	1°C, 0.1°C (optional)
Wiring Method	Terminal connection
Measurement Accuracy	±0.5%FS
Data Retention	Non-volatile memory
Installation Environment	Indoor installation, free from corrosive gases
Relay Output	Relay control output: AC220V/DC30V, 3A
Analog Output	(Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ

Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

① Front Size A: 48×48 B: 48×96 C: 96×48 D: 72×72 E: 96×96
② Input Signal K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
③ Power Supply A: AC power supply D: DC power supply S: Battery test
④ Output Function 1: Relay output 2: Analog output 3: Logic level output
⑤ Control Mode 0: Single setpoint control (heating) 1: Dual setpoint control (heating/cooling) 2: Time proportional control 3: On/off control 4: PID control
⑥ Additional Functions 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function
⑦ Custom Code Custom product, defined based on specific order requirements

Appearance and Mounting Dimensions

Unit: mm

Model	Panel Size (mm)	Overall Dimensions (L × W × H, mm)	Mounting Hole Size (mm)
AK6-A	48 × 48	76 × 45 × 45	46 × 46
AK6-B	48 × 96	72 × 44 × 90	45 × 91
AK6-D	72 × 72	72 × 66 × 66	67 × 67

Operation Panel Function Description
