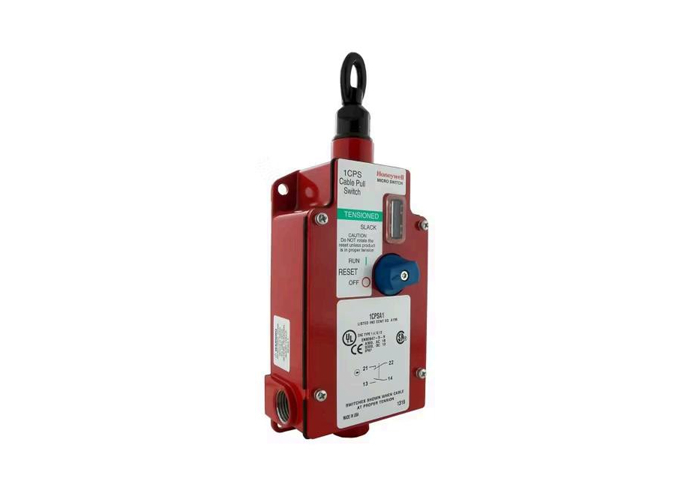

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Honeywell single head cable pull

UL certified precision pressure sensor

IP67 rated NEMA pressure sensor

Contattaci

Chiedi un preventivo

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Dettagli del prodotto

Sigillatura:

IP67, NEMA 1, 4, 12, 13

Contatti:

Argento, placcato oro su argento

Condotto/connettori:

1/2 NPT, PG 13,5, 20 mm, PF 1/2; Conduttore Brad Harrison a 10 pin

Forza per mantenere l'albero di azionamento:

1 CPS e 2 CPS: 25 libbre*

Forza operativa dell'albero di attuazione:

1 CPS e 2 CPS: 40 libbre*

Evidenziare:

Honeywell single head cable pull

UL certified precision pressure sensor

IP67 rated NEMA pressure sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pezzo

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C, D/A, D/P, Western Union, T/T, MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Ottieni il miglior prezzo

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Ottieni il miglior prezzo

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Ottieni il miglior prezzo

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

Honeywell 1CPS Series Single Head Cable Pull

Honeywell's MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, offering a cost-effective solution compared to multiple emergency stop push-buttons. The CPS Series features an internal mechanism that latches on both slackened (push) and pulled cable conditions.

The 1CPS Series is designed for applications with cable spans up to 76 m (250 ft), making it ideal for shorter runs or zone protection in automated systems. For longer conveyor lines up to 152 m (500 ft), the 2CPS Series is available.

The system includes a visual tension indicator and direct-opening switch contacts that remain closed when properly tensioned. When the cable is pulled, slackened, or broken, the NC (Normally Closed) contacts open immediately and remain latched until manually reset.

Key Features

Direct opening action of NC (Normally Closed) contacts
Multiple contact configurations available (1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC)
Standard 76 m (250 ft) cable span capacity (±17°C/±30°F environment)
Removable contact block version available (2CPS)
E-stop option (1CPS) and low profile reset options
Large wiring cavity with straight-through wiring
High-intensity LED status indicators available
Gold-plated contacts standard on 2CPS, optional on 1CPS
Electrostatic, epoxy-coated, die-cast zinc housing

Product Differentiation

Unique internal mechanism latches on both slackened (push) and pulled cable conditions for enhanced safety.

Customer Benefits

Cost-effective emergency stop solution compared to multiple push buttons
Reduces nuisance stops from temperature variations or cable stretch
Positive opening of contacts when cable is actuated

Typical Applications

Warehouse and distribution center conveyor systems
High-vibration conveyor applications
Environments with wide temperature swings
Perimeter guarding in hose-down conditions
Packaging equipment and assembly lines

Technical Specifications

Characteristic	Parameter
Description	Cable-pull safety switches
Switching options	1NO/1NC, 2NO/2NC, 1NO/3NC, or 4NC direct acting
Sealing	IP67, NEMA 1, 4, 12, 13
Contacts	Silver, gold plated over silver
Conduit/connectors	1/2 NPT, PG 13.5, 20 mm, PF 1/2; Brad Harrison 10-pin conductor
Operating temperature	-40°C to 80°C (-40°F to 176°F)
Mechanical endurance	1 million operations
Approvals	UL, CSA, CE, UKCA, SIL

Electrical Ratings

AC Voltage	AC Current	DC Voltage	DC Current
120V	6A	24V	2.8A
240V	3A	125V	0.55A
		250V	0.27A

Ith = 10 A
