Name: Honeywell Model AG400 Digital Pressure Indicator with 15 psi to 15000 psi Range and 0.05% FS Accuracy Featuring RS-232/RS-485 Interface
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modello AG400
Price: 152.00 USD
Availability: InStock

Casa. > prodotti > Sensore di pressione di precisione >

Honeywell Model AG400 Digital Pressure Indicator with 15 psi to 15000 psi Range and 0.05% FS Accuracy Featuring RS-232/RS-485 Interface

15 psi to 15000 psi Digital Pressure Indicator

0.05% FS Accuracy Pressure Sensor

RS-232/RS-485 Interface Accu-Gage AG400

Marca:

Honeywell

Numero di modello:

Modello AG400

Contattaci

Chiedi un preventivo

Honeywell Model AG400 Digital Pressure Indicator with 15 psi to 15000 psi Range and 0.05% FS Accuracy Featuring RS-232/RS-485 Interface

Dettagli del prodotto

Campi di pressione (AG400):

15, 25, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000 psig/A/V

Precisione (AG400):

±0,05%

Numero di canali:

Materiale del caso:

Alluminio

Dimensione del caso:

3/8 DIN

Evidenziare:

15 psi to 15000 psi Digital Pressure Indicator

0.05% FS Accuracy Pressure Sensor

RS-232/RS-485 Interface Accu-Gage AG400

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Ottieni il miglior prezzo

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Ottieni il miglior prezzo

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Ottieni il miglior prezzo

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

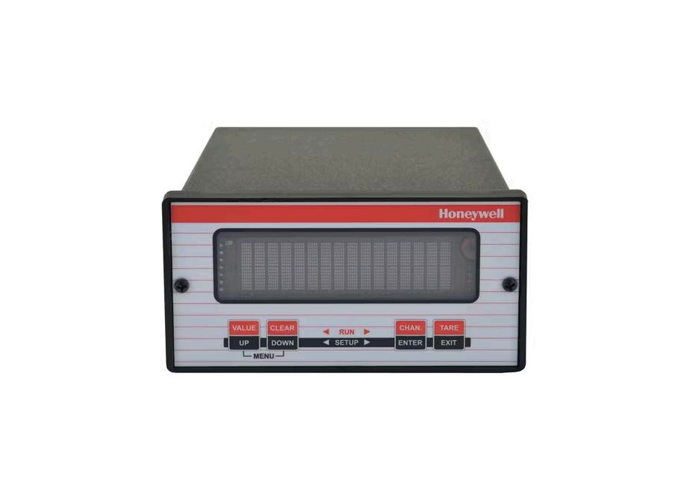

Honeywell Model AG400 Digital Pressure Indicator

This combination pressure transducer and digital readout is designed for both industrial and laboratory applications. The Accu-Gage offers portability, enhanced accuracy, industrial-grade durability, and competitive pricing. Suitable for panel mounting, it provides clear pressure or vacuum readouts for machine operators on process lines or as on-line quality control monitors.

The AG400 model delivers exceptional accuracy (0.05% F.S.) and stability, making it ideal for Metrology and Calibration/Standards laboratories. Featuring a rugged metal case with handle, it withstands harsh industrial environments better than plastic alternatives, serving as an upgrade from precision dial gauges, mercury columns, and quartz tube barometers.

Key Features

Integrated transducer with digital readout
Enhanced reading stability
Wide pressure range: 15 psi to 15000 psi
High accuracy: 0.05% (AG400) or 0.10% (AG401) F.S.
N.I.S.T. traceable instrument and transducer
CE approved

Energy

Life Sciences

Manufacturing

Performance Specifications

Characteristic	Measure
Pressure ranges (AG400)	15, 25, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000 psig/A/V
Pressure ranges (AG401)	15, 25, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000, 60000 psig/A/V
Accuracy (AG400)	±0.05%
Accuracy (AG401)	±0.10%

General Specifications

Characteristic	Measure
Number of channels	1
Case material	Aluminum
Case size	3/8 DIN

Environmental Specifications

Characteristic	Measure
Temperature, operating	16°C to 41°C [60°F to 105°F]
Temperature, effect	0.004%/°F over operating range
Temperature, storage	-29°C to 93°C [-20°F to 200°F]

Digital Display Characteristics

Characteristic	Measure
Number of characters	6
Scaling	Automatic or manual setup
Max. display count	999,999
Field selectable units	psi, bar, mbar, torr, in H2O, ft H2O, in Hg, mm Hg, MPa
Resolution	1/50000

Physical Characteristics

Characteristic	Measure
Power requirements	100 Vac to 230 Vac, 47 Hz to 63 Hz
Pressure port (15 psi to 1000 psi)	1/4-18 NPT male
Pressure port (1500 psi to 10000 psi)	1/4-18 NPT female
Pressure port (15000 psi to 60000 psi)	Autoclave AE F250-C

Special Features

0-560° to 41°C [105°F] or 0V to 10V output (field selectable)
Field selectable engineering units
Auto-zero
Tare
Hi/lo quad limits
Peak/valley hold on input channels

Range Codes

Range Code	Available ranges
BJ	15 psig/A/V
BL	25 psig/A/V
BN	50 psig/A/V
BP	75 psig/A/V
BR	100 psig/A/V
CL	200 psig/A/V
CP	300 psig/A/V
CR	500 psig/A/V
CT	750 psig/A/V
CV	1000 psig/A/V
DJ	1500 psig/A/V
DL	2000 psig/A/V
DN	3000 psig/A/V
DR	5000 psig/A/V
DT	7500 psig/A/V
DV	10000 psig/A/V
EJ	15000 psig/A/V
ES	60000 psig/A/V

Mounting Dimensions and Characteristics

For reference only

Part Numbers

Part Number	Description
060-CS14068489626	AE435DR, 1A, 5B:MODEL ACCU-GAGE AG400, 5,
060-H265-02	AE435BR, 1A, 5B:MODEL ACCU-GAGE AG400,
060-H265-05	AE435CR, 1A, 5B:MODEL ACCU-GAGE AG400,
060-H265-14	AE435EJ, 1A, 5U:MODEL ACCU-GAGE AG400, 15,
060-H265-17	AE435DR, 1A, 5A:MODEL ACCU-GAGE AG400, 5,
060-H297-11	AE436BL, 1A, 5B:MODEL AG-400, 25 PSIA
060-H297-12	AE436BR, 1A, 5B:MODEL ACCU-GAGE AG400,
060-H297-13	AE436BM, 1A, 5B:MODEL ACCU-GAGE AG400, 30
