Name: SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC8SG
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > sensore di qualità dell'acqua >

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Marca:

Yokogawa

Numero di modello:

SC8SG

Contattaci

Chiedi un preventivo

SC8SG Conductivity Sensor with 2-electrode and 4-electrode systems featuring 0.01 cm-1 cell constant for precise liquid conductivity measurement

Dettagli del prodotto

Principio di misurazione:

Sistema a 2 elettrodi o 4-elettrodi

costanti di cella:

0,01 cm-1 o 10 cm-1 (per sistema a 2 elettrodi) 10 cm-1 (per sistema a 4 elettrodi)

Pressione:

1000 kPa max. (500 kPa massimo per i rilevatori con camere di polipropilene)

RTD per compensazione della temperatura:

PT1000 (integrato nel sensore)

Costruzione:

Incapsulamento pioggia (compatibile con JIS C0920)

Connessione di processo:

Avvitare o flusso-through

Evidenziare:

2-electrode system Conductivity Sensor

4-electrode system Conductivity Sensor

0.01 cm-1 cell constant Conductivity Sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

Moneygram, Western Union, T/T, D/P, L/C, D/A.

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ottieni il miglior prezzo

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Ottieni il miglior prezzo

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Ottieni il miglior prezzo

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

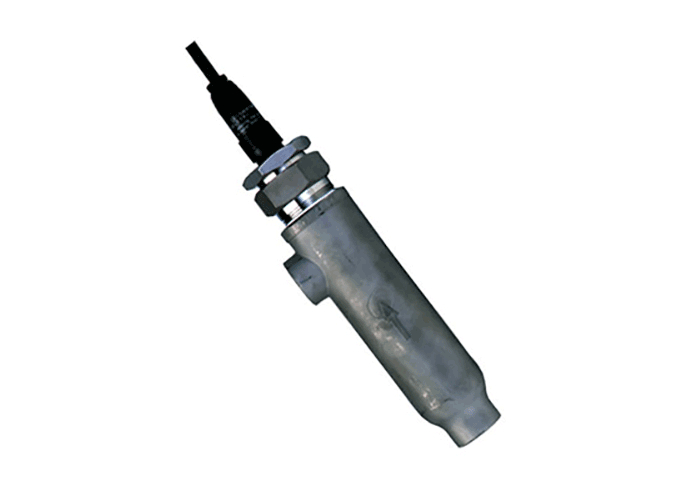

Conductivity Sensor SC8SG

Yokogawa supplies superior on-line analyzers for monitoring and controlling the conductivity of liquids and solutions. Our product line includes the SC450G four-wire conductivity/resistivity converter, SC202G and SC202S two-wire conductivity/resistivity transmitters, and SC100 panel mount conductivity converter, complemented by a range of precision sensors for accurate liquid conductivity measurement.

The SC8SG conductivity sensor is engineered to meet demanding ultrapure water requirements in semiconductor and pharmaceutical industries, while also serving traditional water quality measurement needs in power plants and chemical applications. Available in multiple mounting configurations including screw-in, flow-through with screw joint, and flow-through with flange.

Specifications

Measurement Object	Conductivity of liquids or solutions
Measuring Principle	2-electrode or 4-electrode system
Cell Constants	0.01 cm⁻¹ or 10 cm⁻¹ (2-electrode system) 10 cm⁻¹ (4-electrode system)
Measuring Ranges	0 - 0.5 μS/cm to 0 - 100 μS/cm (0.01 cm⁻¹ cell constant) 0 - 1 mS/cm to 0 - 1000 mS/cm (10 cm⁻¹ cell constant)
Temperature Range	0 to 100°C (130°C max for 0.01 cm⁻¹ detectors, excluding polypropylene chambers)
Pressure	1000 kPa max (500 kPa max for polypropylene chamber detectors)
Flow Rate	No specific limits, though <20 l/min recommended for flow-through detectors
Temperature Compensation	Pt1000 RTD (built into sensor)
Construction	Rainproof encapsulation (JIS C0920 compliant)
Weight	Screw-in: ~1.3 kg (without cable) Flow-through (SCS14 chamber): ~3.1 kg Flow-through (SCS14 flanged): ~4.5 kg Flow-through (polypropylene chamber): ~2.7 kg Flow-through (polypropylene flanged): ~3.2 kg Cable: 0.3 kg (5.5 m), 0.5 kg (10 m)
Process Connection	Screw-in or flow-through
