Name: High Pressure 10 bar/142 PSIG Conductivity Sensor with 150°C/302°F Temperature Range and 7 bar/100 PSIG Rating for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC42/SC4A (J)
Price: 5,000.00 USD
Availability: InStock

Casa. > prodotti > sensore di qualità dell'acqua >

High Pressure 10 bar/142 PSIG Conductivity Sensor with 150°C/302°F Temperature Range and 7 bar/100 PSIG Rating for Water Quality Monitoring

10 bar/142 PSIG Conductivity Sensor

150°C/302°F Water Quality Sensor

7 bar/100 PSIG Contacting Sensor

Marca:

Yokogawa

Numero di modello:

SC42/SC4A (J)

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Materiali di costruzione:

316 acciaio inossidabile o titanio

Design Sytle:

2-elettrodo

Elemento di temperatura:

PT1000

Evidenziare:

10 bar/142 PSIG Conductivity Sensor

150°C/302°F Water Quality Sensor

7 bar/100 PSIG Contacting Sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ottieni il miglior prezzo

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Ottieni il miglior prezzo

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Ottieni il miglior prezzo

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

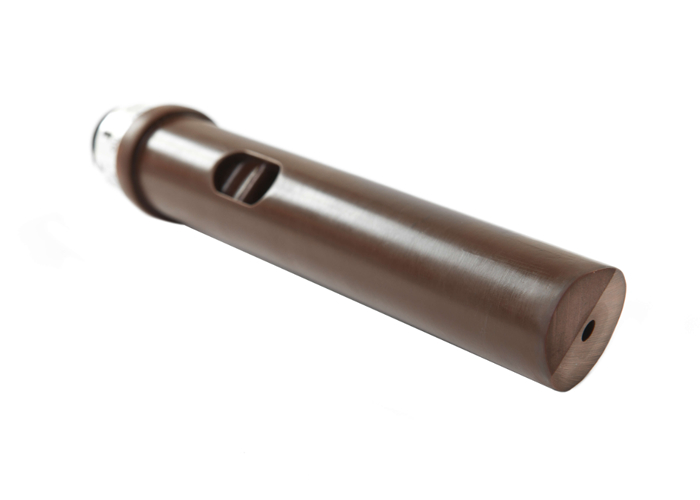

Contacting Conductivity Sensors SC42/SC4A(J)

Why Measure Conductivity?

Conductivity serves as a cost-effective, low-maintenance indicator of water quality. High-quality water with minimal contaminants exhibits low conductivity. Compared to pH measurement, conductivity requires far less maintenance and minimal calibration. Common applications include boiler feedwater, reverse osmosis (RO), and demineralizer systems.

Conductivity measurements can correlate to percentage concentration values for solutions like acids or bases, as conductivity increases with ion concentration. However, this correlation is only valid for single-chemical solutions, not mixtures.

Measurement Methods

Two primary sensor types measure conductivity:

Contacting Sensors: Measure conductivity by applying alternating current to immersed electrodes and measuring resulting voltage
Inductive (Toroidal) Sensors: Electrodeless measurement method

Measurement Accuracy Factors

Several factors can influence conductivity measurement accuracy:

Polarization: Affects electrode performance
Contamination: Deposits on electrode surfaces cause lower readings (4-pole cells prevent this)
Cable Resistance: Can introduce measurement errors
Temperature: Conductivity increases with temperature

Product Specifications

Model Code	SC42 Large Bore	SC4A(J)	SC42 Small Bore
Cell Constants	0.01/cm; 0.1/cm; 1.0/cm	0.02/cm; 0.1/cm	0.02/cm; 0.1/cm; 1.0/cm
Ranges	0.02-2,000 µS/cm; 0.2-20,000 µS/cm; 2.0-200,000 µS/cm	0.04-400 µS/cm; 0.2-2,000 µS/cm	0.04-400 µS/cm; 0.4-2,000 µS/cm; 4.0-5,000 µ/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	10 bar/142 PSIG	10 bar/142 PSIG	7 bar/100 PSIG
Maximum Temperature	150°C/302°F	110°C/230°F	100°C/212°F
Installation Connections	Requires FD40, FS40 or FF40 Holder	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp; Retractable	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp
Integral Cable	NO	YES	YES
Materials Of Construction	316 Stainless Steel	316 Stainless Steel or Titanium	316 Stainless Steel or Titanium
Design Style	2-Electrode	2-Electrode	2-Electrode
