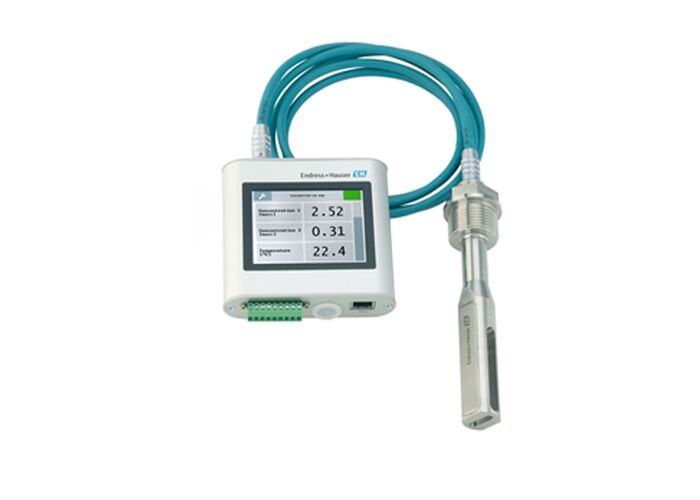

Teqwave I – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

Luogo di origine:

Svizzera

Marca:

Endress+Hauser

Certificazione:

Contattaci

Chiedi un preventivo

Teqwave I – Ultrasonic concentration meter

Dettagli del prodotto

Temperatura di processo:

Da 0 a 100 °C (da 32 a 212 °F)

Pressione di processo:

massimo 16 bar a 20 °C (232 psi a 68 °F)

Esposizione/operazione:

Indicazione dello stato tramite LEDDisplay touch a colori TFT

Prodotti:

Modbus TCP, relè (50 V CA, 30 V CC 1 A), uscita analogica da 4-20 mA/da 0 a 10 V

Evidenziare:

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 GIORNI LAVORATIVI

Termini di pagamento

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

Proline Prosonic Flow E 100 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 300 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow G 500 ultrasonic flowmeter

Ottieni il miglior prezzo

Proline Prosonic Flow I 400 ultrasonic flowmeter

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

Teqwave I – Ultrasonic Concentration Meter

The Teqwave I insertion measuring device delivers precise real-time liquid analysis for vessels and larger pipes. This advanced ultrasonic concentration meter provides continuous monitoring of multiple parameters simultaneously, reducing operational costs while ensuring product quality.

Key Specifications

Maximum Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Temperature: 0 to 100°C (32 to 212°F) Pressure: max. 16 bar at 20°C (232 psi at 68°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti), others available on request

Primary Benefits

Easy and efficient - Real-time in situ liquid analysis
Full transparency - Constant monitoring of product quality without sampling
Highest process safety - Reliable metering with robust, maintenance-free sensor
Cost-saving - Fewer measuring points due to multivariable measurement
Customized usage - Innovative application concept, expandable for changing measuring tasks
Simplified process control - User-friendly operation and clear status visualization
Local data backup - Integrated storage for measured values up to 7.5 years

Technical Features

Sensor Specifications

Insertion lengths: 180 mm (7 in) or 500 mm (20 in)
Accurate measurement independent of flow profile
Material: Stainless steel 1.4571 (316Ti)
Ingress protection: IP68 (with plugged-in cable)

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
Outputs: 4-20 mA, Modbus TCP, Relay (AC 50V, DC30V 1A), 0 to 10V Analog
Housing material: Anodized aluminum and glass
Ingress protection: IP40

Measurement Capabilities

The Teqwave I simultaneously measures concentration, sound velocity, temperature, acoustic density, and dispersion using advanced ultrasonic technology. Its acoustic waveguide detects even the smallest changes with exceptional precision.

Electrical & Safety

Power Supply	DC 24V ±20%
Certifications	CE, UKCA, RCM
Ex Certification	Non-hazardous area
