PH8EHP pH Sensor for High Purity Water with Pt1000 Temperature Compensation and SENCOM4.0 Digital Communication

Dettagli del prodotto

Temperatura di misurazione:

Da 0 a 50 ℃

Misurazione della pressione:

Pressione atmosferica

Sensore di compensazione della temperatura:

PT1000

Peso:

Ca. 0,4 kg

Funzione di comunicazione digitale:

Support Sencom4.0 (connettore Variopin e adattatore SA11 collegato)

Evidenziare:

Pt1000 pH Sensor

SENCOM4.0 Water Quality Sensor

SA11 Adapter PH8EHP Sensor

Termini di pagamento e di spedizione

Quantità di ordine minimo

1pcs

Imballaggi particolari

Ogni unità ha una singola scatola e tutte le caselle sono imballate in pacchetti standard o richiest

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione

1000 pezzi/pezzi a settimana negoziabile

Prodotti correlati

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Ottieni il miglior prezzo

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Ottieni il miglior prezzo

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Ottieni il miglior prezzo

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Ottieni il miglior prezzo

Contattaci

86--17719566736

Contattaci ora

Descrizione del prodotto

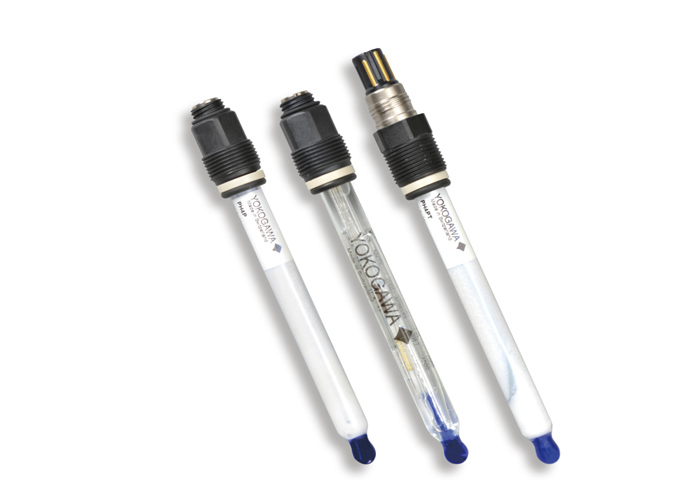

pH Sensor for High Purity Water PH8EHP

Yokogawa's process pH Analyzers are highly reliable and feature advanced functions for water quality management in production processes, wastewater treatment plants, and general purpose pH control systems. Based on years of experience, Yokogawa offers comprehensive solutions tailored to specific applications.

The PH8EHP pH sensor and PH8HH holder provide reliable pH measurement for high purity water used in boilers and semiconductor processes. When combined with the SENCOM Smart Adapter SA11, these sensors can function as digital detectors with Variopin connectors.

Key Features

Dedicated holder solves measurement challenges in high-purity water applications
Temperature compensation when used with PH450G and PH202 pH/ORP analyzers
Digital detection capability when combined with SENCOM Smart Adapter SA11

Technical Specifications

1. pH Sensor PH8EHP for High Purity Water

Parameter	Specification
Measuring temperature	0 to 50℃
Measuring pressure	Atmospheric pressure
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4 kg
Digital communication function	Supports SENCOM4.0 (with Variopin connector and SA11 adapter)

2. Holder PH8HH for High Purity Water

Parameter	Specification
Material	Acrylic resin, 316SS, chloroprene rubber
Process connections	Inlet: Rc1/4 or 1/4NPT (F) Outlet: Rc1/2 or 1/2NPT (F)
Mounting method	50A (2-inch) vertical/horizontal pipe mounting or wall mounting (bracket specified separately)
Weight	Approx. 1.7 kg
